PostPosted: Tue Jan 20, 2009 10:32 pm    Post subject: Searching for TMS3631 datasheet Reply with quote  Mark this post and the followings unread

TMS3631 is 8 channel programmable divider/tone generator used as DCO in SIEL Opera 6 / DK600 Synthesizers.

http://www.vintagechip.altervista.org/ICs/TMS3631.html

I couldn't find datasheet anywhere... Even TI, who manufactured this chip, now knows nothing about it.

I need to know how to set it to desired note - how to program it.

It seems, that it is programmed by some kind of serial interface for each channel. It has clock input (for input signal to be divided), CE (chip select - enables programming), WCK (looks like WriteClocK to me), and data inputs. Siel synths use six channels, and there are six data inputs used (channels 2-7, and data lines 1-6). But I don't know exact data format it uses (how many bits, MSb or LSb first, rising or falling clock edge etc)

I'm looking for this info in order to make digital board retrofit (adding CC transmission and receiving) - to write new OS for new MCU I have to know how to drive these chips.

EDIT:
After reading M112 datasheet, I think it's also possible that the chip uses parallel interface, with different commands writing to it's internal registers... which complicates things a bit....

If you have any info - thanks in advance Smile


 Description:
 Filesize:  84.12 KB
 Viewed:  243 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
aladan



Joined: Aug 13, 2011
Posts: 52
Location: Australia

PostPosted: Fri Aug 11, 2017 5:13 am    Post subject: Reply with quote  Mark this post and the followings unread

Creeeeeak! And another dead thread rears its head.

I just found two of these chips! Did you get anywhere with this? Otherwise I guess I'll put out feelers to SIEL owners and see if anyone wants them.

Cheers,
A.
Back to top
View user's profile Send private message
adamstan



Joined: May 23, 2008
Posts: 34
Location: poland

PostPosted: Sun Aug 13, 2017 3:50 pm    Post subject: Reply with quote  Mark this post and the followings unread

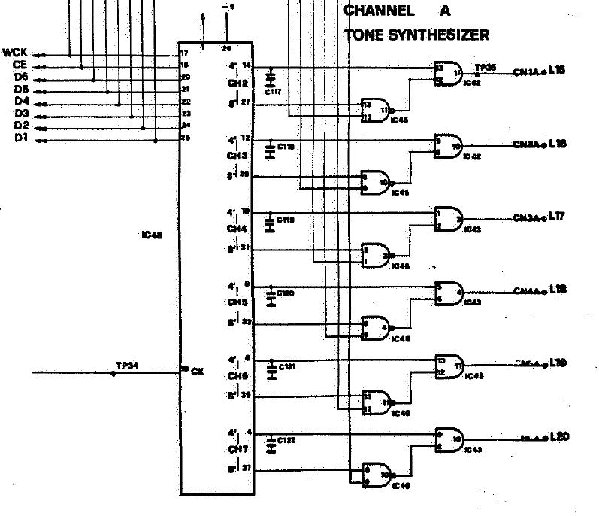

Yes, I've found some info - unfortunately long after I sold my SIEL. I'll just quote my post from VSE:
adamstan on VSE wrote:
Today, after some googling, I've found this:
Posted Image, might have been reduced in size. Click Image to view fullscreen.
Posted Image, might have been reduced in size. Click Image to view fullscreen.
Posted Image, might have been reduced in size. Click Image to view fullscreen.

So it seems, that to send it key data, you do like this:

a) raise CE line
b) prepare key data for Ch. 1 on data bus
c) send writing pulse on WCK
d) repeat b) & c) for Ch. 2-8
e) send 9th WCK pulse for update
f) pull CE down

Also, the text on retropc.net site mentions, that it doesn't work straight with TTL levels, instead H is 0V, while L is anything between -4V and Vdd (negative power supply).

Unfortunately, in the meantime I've sold my Opera. Now I miss it Sad

I've thought, that one analog poly is enough - silly me...
Back to top
View user's profile Send private message
aladan



Joined: Aug 13, 2011
Posts: 52
Location: Australia

PostPosted: Sun Aug 13, 2017 4:08 pm    Post subject: Reply with quote  Mark this post and the followings unread

Thank you for that.

After some extensive googling on the weekend I also understood some more useful information, which I'll put here to make things easier for future googlers Smile

There are two variants of the chip, generating different note footings. TMS3631-R1104 generates the octave pitches (2' 4' 8' 16') and TMS3631-R1105A the 1/3' ones (10'2/3 5'1/3 2'2/3 1'1/3).

Channel 1 on each chip can only generate the highest pitch, and not mix different sub-octaves.

The chips are a little tricky to use, requiring a -8V to -15V supply relative to ground, which means most MCUs will need level conversion circuitry to interface to the control and data pins. Data from the output pins is usually muxed together in an interesting way too, using diodes driving into a voltage divider off a series of footing amount controls. Really cool design, and ripe for voltage control.

Cheers,
A.

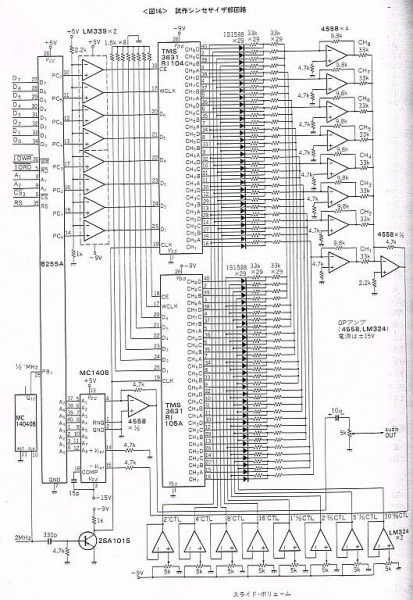

 Description:
