delayed



Joined: Jun 24, 2008
Posts: 129
Location: TN

PostPosted: Fri Sep 24, 2010 12:08 am    Post subject: VCF up and filtering Reply with quote  Mark this post and the followings unread

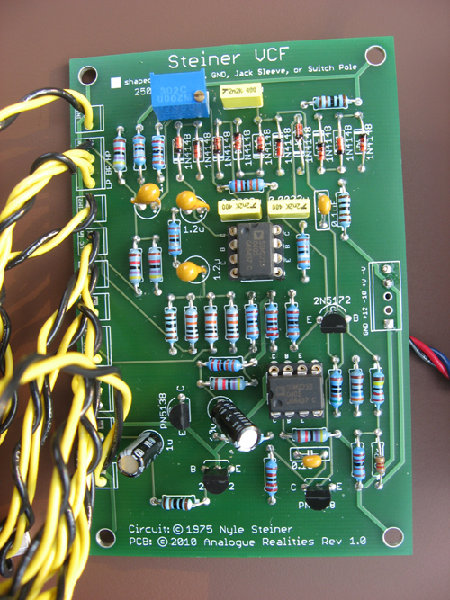

Here are some images of the VCF. A simple and easy build with great sounding results. Worked without any debugging. Stuff, wire, add power, and filter!


 Description:
 Filesize:  131.14 KB
 Viewed:  148 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
delayed



Joined: Jun 24, 2008
Posts: 129
Location: TN

PostPosted: Fri Sep 24, 2010 12:10 am    Post subject: Reply with quote  Mark this post and the followings unread

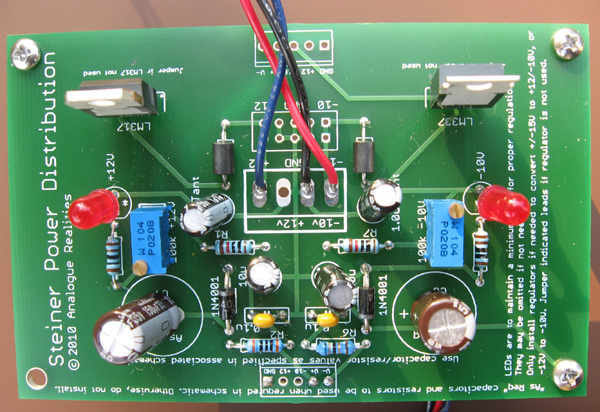

filter stuffed and power board


 Description:
 Filesize:  192.5 KB
 Viewed:  2748 Time(s)




 Description:
 Filesize:  254.01 KB
 Viewed:  144 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  195.65 KB
 Viewed:  147 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.



Back to top
View user's profile Send private message
gwaidan



Joined: Mar 07, 2009
Posts: 53
Location: Sydney, Australia

PostPosted: Fri Sep 24, 2010 4:18 am    Post subject: Reply with quote  Mark this post and the followings unread

Nice!
Back to top
View user's profile Send private message
kjackman



Joined: Sep 05, 2010
Posts: 69
Location: Utah, USA

PostPosted: Fri Sep 24, 2010 8:10 pm    Post subject: Reply with quote  Mark this post and the followings unread

Wow, you've been quite busy!

I've got a month or two before I can start diving into this project. I have most of the tools I need, but I'm still short an oscilloscope and a few other odds and ends. And then I'll need to start stocking up on pots, trimpots, knobs, and all the rest. But pretty soon I'll be placing an order for a few of those PCBs (VCO, Filter, VCA, and Triple EG to start).

I decided to shoot for two power supplies, rather than having to deal with the headaches of converting 15v modules for 12v or vice versa. I was going to start the DIY system with MFOS modules, but I'd like to try these instead.
Back to top
View user's profile Send private message
dingebre



Joined: Aug 10, 2008
Posts: 260
Location: Salt Lake City, UT USA

PostPosted: Sat Sep 25, 2010 2:54 am    Post subject: Reply with quote  Mark this post and the followings unread

kjackman wrote:
Wow, you've been quite busy!

I've got a month or two before I can start diving into this project. I have most of the tools I need, but I'm still short an oscilloscope and a few other odds and ends. And then I'll need to start stocking up on pots, trimpots, knobs, and all the rest. But pretty soon I'll be placing an order for a few of those PCBs (VCO, Filter, VCA, and Triple EG to start).

I decided to shoot for two power supplies, rather than having to deal with the headaches of converting 15v modules for 12v or vice versa. I was going to start the DIY system with MFOS modules, but I'd like to try these instead.


It's hard to go wrong. There are so many great modules out there you'll have fun with whatever you decide to do.

Of course, I think the Steiner modules are the coolest ones right now, but I'm hardly biased Wink

Two supplies is not a bad way to go, however, with the onboard regulators, at least for my designs, it's pretty straight forward to run the Steiner modules on +/- 15 volts.

Give me a call and you could come over sometime and I'll show you how I'm dealing with mixed voltage modules.

David
