PostPosted: Sun Jul 08, 2012 2:51 am    Post subject: Some new modules and patches made with that Reply with quote  Mark this post and the followings unread

Hey, I found some extra modules in the editor that actually seem to work!

It's a "resonator" module and "driver" module. I don't know exactly how to use them or connect them, you can see them below in the screenshot.

There are some more modules that never made it into the G2, I tried some of them, but not all seem to work. Maybe because they don't exist in the G2 firmware, or maybe I haven't formatted the message correctly.

ModuleType ShortName
======== =========
AR-Env
AudioIn
Blue2Red, seems to be a testing module
BusIn
ClkDivFix
35 Driver -> Works!
EnvDX
LfoD
Mixer6-1A
Mixer6-1B
OutBusA
OutBusB
PeakFollow
101 PolarFade -> Doesn't seem to work
120 PolarPan -> Doesn't seem to work
10 PulseOsc -> Doesn't seem to work
Red2Blue
56 Resonator -> Works!
207 RndChaos -> Doesn't seem to work
RndDistr
RndState
RndStep
SeqA
104 ShelvEQ
14 SyncOsc -> Doesn't seem to work

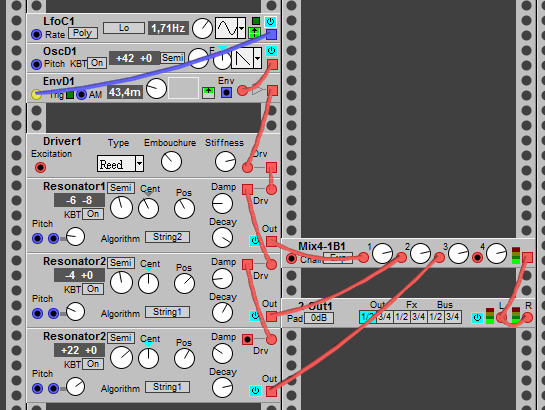

The bottom screenshot shows some of the modules I tried sofar, so only the Resonator and the Driver worked, but interesting none the less!

I wonder what the driver is supposed to do...

[NOTE by Blue Hell: this was split off from http://electro-music.com/forum/topic-48872.html ]


 Description:
 Filesize:  63.45 KB
 Viewed:  165 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  56.49 KB
 Viewed:  150 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
My old OS NMG2 editor : http://sourceforge.net/projects/nmg2editor/?source=directory
My new G2 editor FMX : http://www.bverhue.nl/g2dev/?page_id=17
Back to top
View user's profile Send private message Visit poster's website
dorremifasol



Joined: Sep 28, 2006
Posts: 775
Location: Barcelona, Spain
Audio files: 7
G2 patch files: 47

PostPosted: Sun Jul 08, 2012 4:49 am    Post subject: Reply with quote  Mark this post and the followings unread

Amazing discovery! I suppose they expected the G2 to be successful and add / finish lots of interesting modules over time.
_________________
Cheers,
Albert
Back to top
View user's profile Send private message Visit poster's website
Scot Solida



Joined: Oct 24, 2009
Posts: 96
Location: Hutchinson Kansas

PostPosted: Sun Jul 08, 2012 4:59 am    Post subject: Reply with quote  Mark this post and the followings unread

Seems like physical modeling. The Driver is clearly an exciter model, used probably to excite the Resonator (which is also likely to be a typical PM resonator - it's set to strings at the moment). Strange that it lists pretty much wind/brass exciters, while the resonator has strings added in (the "tube" would represent the body of the wind/horn). There is a bow exciter listed, so that must be it. Probably a short burst of noise could be used in lieu of a proper pluck exciter.

This is exciting stuff, especially given that A: they work! and B: my long lost G2 returns to me next week, so I can play with 'em.

Nicely done, sir!
Back to top
View user's profile Send private message
Blue Hell
Site Admin


Joined: Apr 03, 2004
Posts: 20473
Location: The Netherlands, Enschede
Audio files: 147
G2 patch files: 318

PostPosted: Sun Jul 08, 2012 5:40 am    Post subject: Reply with quote  Mark this post and the followings unread

The polar thingies once were available in some beta ... can't recall why they were retracted exactly ... anyway, there might be some code too in old beta's, just too bad they were handed out under a non disclosure agreement.
_________________
Jan
Back to top
View user's profile Send private message Visit poster's website
brunov



Joined: Aug 03, 2011
Posts: 204
Location: delft
Audio files: 2
G2 patch files: 2

PostPosted: Sun Jul 08, 2012 5:42 am    Post subject: Reply with quote  Mark this post and the followings unread

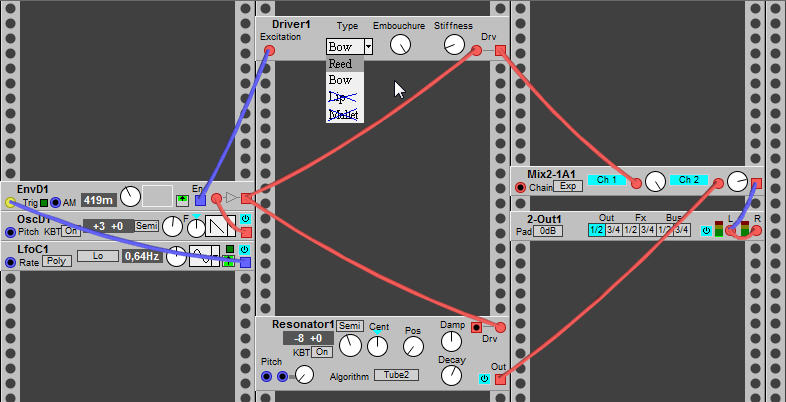

I suppose the "drive" inputs/outputs are meant to be chained like so.

These two modules seem to be the only ones that work. That's a pity, the RndChaos, PulsOsc and SyncOsc seem interesting also.

I'll try and make an intermediate release soon that include these two new modules.


 Description:
 Filesize:  63.9 KB
 Viewed:  10228 Time(s)




_________________
My old OS NMG2 editor : http://sourceforge.net/projects/nmg2editor/?source=directory
My new G2 editor FMX : http://www.bverhue.nl/g2dev/?page_id=17
Back to top
View user's profile Send private message Visit poster's website
brunov



Joined: Aug 03, 2011
Posts: 204
Location: delft
Audio files: 2
G2 patch files: 2

PostPosted: Sun Jul 08, 2012 6:54 am    Post subject: Reply with quote  Mark this post and the followings unread

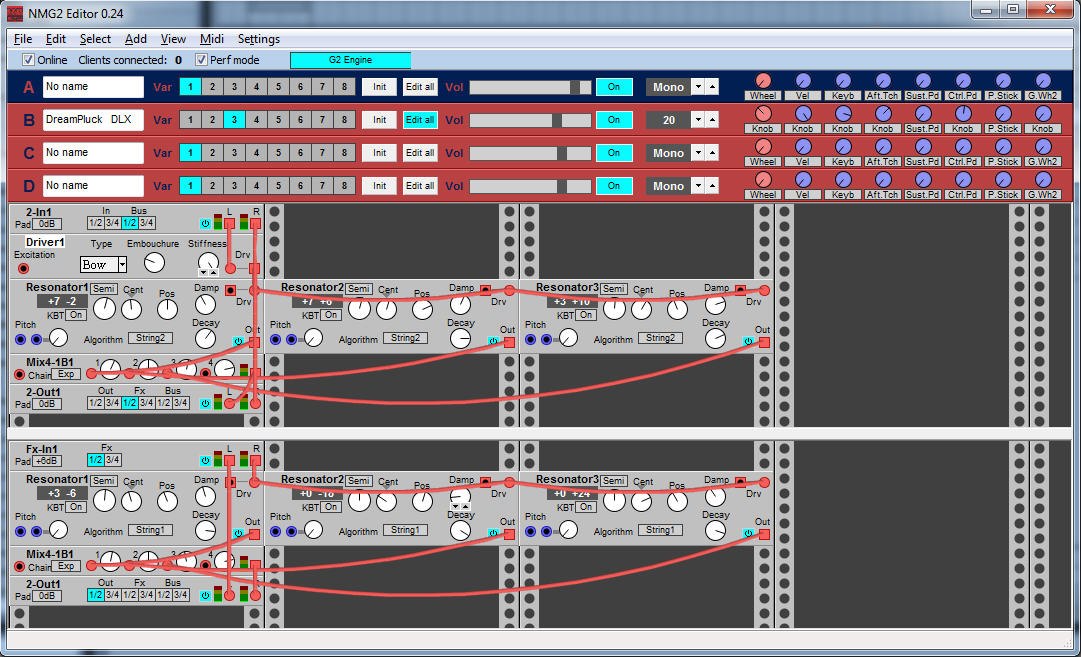

I made a release 0.24 that includes these modules.

If you already installed the OS editor, you only have to download the zip and extract it somewhere on disk.

Otherwise you'll have to install the libusb-win32, then please read and follow the install instructions in the readme file carefully.

_________________
My old OS NMG2 editor : http://sourceforge.net/projects/nmg2editor/?source=directory
My new G2 editor FMX : http://www.bverhue.nl/g2dev/?page_id=17
Back to top
View user's profile Send private message Visit poster's website
veta



Joined: Feb 19, 2007
Posts: 37
Location: www

PostPosted: Sun Jul 08, 2012 11:41 am    Post subject: Reply with quote  Mark this post and the followings unread

Blue Hell wrote:
The polar thingies once were available in some beta ... can't recall why they were retracted exactly ... anyway, there might be some code too in old beta's, just too bad they were handed out under a non disclosure agreement.


yes. it would be terrible if that code got out in the wild somehow.

if some unscrupulous individual were to post it somewhere anonymously...
well, i would hate to see something like that happen to clavia.
especially given their impeccable track record of supporting their customers, fixing bugs, updating the editor, etc.

brunov: you are doing amazing work. is there any chance of a mac version of your editor?
Back to top
View user's profile Send private message
Blue Hell
Site Admin


Joined: Apr 03, 2004
Posts: 20473
Location: The Netherlands, Enschede
Audio files: 147
G2 patch files: 318

PostPosted: Sun Jul 08, 2012 11:58 am    Post subject: Reply with quote  Mark this post and the followings unread

Laughing
_________________
Jan
Back to top
View user's profile Send private message Visit poster's website
varice



Joined: Dec 29, 2004
Posts: 719
Location: Northeastern shore of Toledo Bend
Audio files: 22
G2 patch files: 49

PostPosted: Sun Jul 08, 2012 12:26 pm    Post subject: Reply with quote  Mark this post and the followings unread

wow! Great find!

Please do us a favor. Save a working patch built with the Driver and Resonator modules and post it here. I would like to see if the G2 Editor (mine is version 1.40) can load the patch and edit it. If that works, it might be possible to have a template patch that contains all of these working hidden modules that could be used with the G2 Editor.

My theory is that these hidden modules can be edited once they are in a patch, it’s just that the G2 Editor software just does not allow you to *add* these hidden modules while editing a patch.

This is all just very good work brunov. Bravo!

_________________
varice
Back to top
View user's profile Send private message
varice



Joined: Dec 29, 2004
Posts: 719
Location: Northeastern shore of Toledo Bend
Audio files: 22
G2 patch files: 49

PostPosted: Sun Jul 08, 2012 12:48 pm    Post subject: Reply with quote  Mark this post and the followings unread

veta wrote:
Blue Hell wrote:
The polar thingies once were available in some beta ... can't recall why they were retracted exactly ... anyway, there might be some code too in old beta's, just too bad they were handed out under a non disclosure agreement.


yes. it would be terrible if that code got out in the wild somehow.

if some unscrupulous individual were to post it somewhere anonymously...
well, i would hate to see something like that happen to clavia.
especially given their impeccable track record of supporting their customers, fixing bugs, updating the editor, etc....


Oh my, that would be just so terrible!!!! Laughing

_________________
varice
Back to top
View user's profile Send private message
Antimon



Joined: Jan 18, 2005
Posts: 3682
Location: Sweden
Audio files: 266
G2 patch files: 96

PostPosted: Sun Jul 08, 2012 12:54 pm    Post subject: Reply with quote  Mark this post and the followings unread

Shocked cheers

That's amazing! If these modules turn out to be usable it's a more important find than the Higgs particle!

Ok I exaggarate (though just a little bit), but really, awesome work! Very Happy Very Happy

_________________
Antimon's Window
@soundcloud @Flattr home - you can't explain music
Back to top
View user's profile Send private message Visit poster's website
brunov



Joined: Aug 03, 2011
Posts: 204
Location: delft
Audio files: 2
G2 patch files: 2

PostPosted: Sun Jul 08, 2012 1:10 pm    Post subject: Reply with quote  Mark this post and the followings unread

Varice, I'm going to upload the patch but I'll be surprised if it works.

I'm on G2 Editor and OS version 1.62 and when I try to load it, I get an error message "Module doesnt exist."

For the modules we're dependend on the G2 OS, there's no way we can make changes to the OS. Somehow they forgot to take these two modules out of the OS or forgot to put them in the editor.

With these other modules, changes are slim that they exist somewhere in the OS. The only thing I do is to send a message from the editor "Create module type 56" to the G2, for the driver and resonater this worked but and for all the others the G2 responds with "Error 3", which probably means "Module doesn't exist".

You'll get some Idea of the modules that where planned when you look at the little map of module icons.

Veta: I hope to make a mac version someday, but that won't be any time soon. Maybe this winter I'll get some time to really do some serious work again on the editor.

I uploaded a small example of some sounds I made with the patch.


Resonator.wav
 Description:

Download
 Filename:  Resonator.wav
 Filesize:  4.5 MB
 Downloaded:  383 Time(s)


Resonator.pch2
 Description:

Download
 Filename:  Resonator.pch2
 Filesize:  1.76 KB
 Downloaded:  437 Time(s)


 Description:

Download
 Filename:  module_map.bmp
 Filesize:  339.35 KB
 Downloaded:  207 Time(s)


_________________
My old OS NMG2 editor : http://sourceforge.net/projects/nmg2editor/?source=directory
My new G2 editor FMX : http://www.bverhue.nl/g2dev/?page_id=17
Back to top
View user's profile Send private message Visit poster's website
brunov



Joined: Aug 03, 2011
Posts: 204
Location: delft
Audio files: 2
G2 patch files: 2

PostPosted: Sun Jul 08, 2012 1:12 pm    Post subject: Reply with quote  Mark this post and the followings unread

Antimon wrote:
If these modules turn out to be usable it's a more important find than the Higgs particle!Very Happy
Very Happy
_________________
My old OS NMG2 editor : http://sourceforge.net/projects/nmg2editor/?source=directory
My new G2 editor FMX : http://www.bverhue.nl/g2dev/?page_id=17
Back to top
View user's profile Send private message Visit poster's website
varice



Joined: Dec 29, 2004
Posts: 719
Location: Northeastern shore of Toledo Bend
Audio files: 22
G2 patch files: 49

PostPosted: Sun Jul 08, 2012 1:36 pm    Post subject: Reply with quote  Mark this post and the followings unread

brunov wrote:
Varice, I'm going to upload the patch but I'll be surprised if it works.

I'm on G2 Editor and OS version 1.62 and when I try to load it, I get an error message "Module doesnt exist."

For the modules we're dependend on the G2 OS, there's no way we can make changes to the OS. Somehow they forgot to take these two modules out of the OS or forgot to put them in the editor...

brunov, thanks for the test patch. I couldn’t load it with the v1.40 Editor either. I got the same error message. Rats!!!

Well, I’ll just go ahead and install your open source editor then to check out these hidden modules. Thanks again for your excellent work Exclamation

_________________
varice
Back to top
View user's profile Send private message
veta



Joined: Feb 19, 2007
Posts: 37
Location: www

PostPosted: Sun Jul 08, 2012 7:10 pm    Post subject: Reply with quote  Mark this post and the followings unread

the resonator sounds great in the wav you posted, brunov.

perhaps this discovery deserves it's own thread?
Back to top
View user's profile Send private message
varice



Joined: Dec 29, 2004
Posts: 719
Location: Northeastern shore of Toledo Bend
Audio files: 22
G2 patch files: 49

PostPosted: Sun Jul 08, 2012 7:26 pm    Post subject: Reply with quote  Mark this post and the followings unread

veta wrote:
the resonator sounds great in the wav you posted, brunov.

perhaps this discovery deserves it's own thread?

IMHO, I would think so, especially for posting patches using these hidden modules that are not compatible with the Clavia G2 Editor…

_________________
varice
Back to top
View user's profile Send private message
drapdap



Joined: Oct 11, 2004
Posts: 193
Location: bp
Audio files: 1

PostPosted: Mon Jul 09, 2012 2:20 am    Post subject: Reply with quote  Mark this post and the followings unread

Wow! Very Happy excellent work Bruno!
it does sound neat...

veta wrote:
the resonator sounds great in the wav you posted, brunov.
perhaps this discovery deserves it's own thread?


Also could make Bruno's Development sticky, so it stays on top?
btw. the fixed clockdivider was active till 1.12 or something, than they changed it to the variable one, so that one should work too, maybe a bit pointless to have it, but oh well, luxury! Very Happy
Back to top
View user's profile Send private message
brunov



Joined: Aug 03, 2011
Posts: 204
Location: delft
Audio files: 2
G2 patch files: 2

PostPosted: Mon Jul 09, 2012 11:54 am    Post subject: Reply with quote  Mark this post and the followings unread

I tried the static clockdivider but sadly no, g2 won't have it. I guess we just have to be happy with whatever falls our way.

Alle these other modules have a distinct "test"/"prototype"/"not really ready" feeling about them, but I'm really happy with the driver/resonator.

The driver has 4 modes "Reed", "Bow", "Lips" and "Mallet" but for one reason or another the last two are crossed out. Maybe they don't want us to use them...

Then the resonater has 5 algorithms: 2 string and 3 tubes.

They are quite expensive DSP wise, can only have 6 per patch on an expanded G2 and the you have to devide them over VA and FX location.

But if you patch'm like this, taking the input from another slot, you can make some really big sounds. Razz


 Description:
 Filesize:  200.91 KB
 Viewed:  218 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
My old OS NMG2 editor : http://sourceforge.net/projects/nmg2editor/?source=directory
My new G2 editor FMX : http://www.bverhue.nl/g2dev/?page_id=17
Back to top
View user's profile Send private message Visit poster's website
drapdap



Joined: Oct 11, 2004
Posts: 193
Location: bp
Audio files: 1

PostPosted: Tue Jul 10, 2012 3:17 pm    Post subject: Reply with quote  Mark this post and the followings unread

Hey, no dsp usage meter in the open source editor??? 'Twisted Evil'

brunov wrote:
I guess we just have to be happy with whatever falls our way.


shure, but looking at the list one can`t help wondering...

EnvDX?
maybe a 16 stage envelope? Very Happy

about the resonators, i remember Tombola patched them up, i wonder how they compare (i'm not near my engine now, but soon, can't wait to try them hidden modules) anyway, here's the thread...
http://electro-music.com/forum/topic-12177.html

there's a bit of misconception about resonators, in computer/dsp world they mean these tracked/excited oscillator/delay whatevers, (Very Happy) and in
analog modular world they mean bandpass filters, (i guess) since the korg ps3200 and the polymoog... always confuses me.

anyway, keep us updated Bruno! this is exciting!
Back to top
View user's profile Send private message
mosc
Site Admin


Joined: Jan 31, 2003
Posts: 17606
Location: Allentown, PA
Audio files: 124
G2 patch files: 60

PostPosted: Tue Jul 10, 2012 5:26 pm    Post subject: Reply with quote  Mark this post and the followings unread

I made this topic Sticky, as suggested. Thanks...

Since the open source editor is mentioned on the very first page of this topic, I'm not sure what splitting would accomplish.

_________________
--Howard
my music and other stuff
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address
drapdap



Joined: Oct 11, 2004
Posts: 193
Location: bp
Audio files: 1

PostPosted: Wed Jul 11, 2012 2:46 am    Post subject: Reply with quote  Mark this post and the followings unread

mosc wrote:
I made this topic Sticky, as suggested. Thanks...



wonderful, thanks Mosc!
Back to top
View user's profile Send private message
brunov



Joined: Aug 03, 2011
Posts: 204
Location: delft
Audio files: 2
G2 patch files: 2

PostPosted: Wed Jul 11, 2012 3:41 am    Post subject: Reply with quote  Mark this post and the followings unread

mosc wrote:
I made this topic Sticky, as suggested.


Thanks!

drapdap wrote:
about the resonators, i remember Tombola patched them up, i wonder how they compare


I did a little compare, they sound quite different. I bit more rough maybe. They are very sensitive around the self-oscillating frequency, especially the "tube2" algorithm, which can result in massive clipping of the output.

I'm very happy that it's these two modules that work, since they might be difficult to reproduce with other modules, so really interested what you can make out of these. Very Happy

Maybe you can als figure out what to do with the "Excitation" input of the driver module.

drapdap wrote:
EnvDX? maybe a 16 stage envelope?


I would love to try it out, but I can't find the corresponding icon in de module icon map. When it's on the module icon map I can figure out which module type number I have to send to the G2.

drapdap wrote:
Hey, no dsp usage meter in the open source editor???


Well, eh, sorry, no, that requires solving a bit of a puzzle that's beyond me at the moment.

I had a try earlier, here's a tabel in which I've put the data out of "resources used" message dat the G2 sends after adding a module.

https://docs.google.com/spreadsheet/ccc?key=0AqgnqbP0tPvDdGpnNW80X2RlRVVXR08xUHlvV0RiRlE

I figured out that there are 10 or 11 parameters (resources, delay memory for example) and out of these the "Cycles" and "Memory" should be calculated. But the problems is, I don't know what the parameters are and what there bounds are.

So, have to do without for the moment, unless maybe someone else can see any logic in this table?

_________________
My old OS NMG2 editor : http://sourceforge.net/projects/nmg2editor/?source=directory
My new G2 editor FMX : http://www.bverhue.nl/g2dev/?page_id=17
Back to top
View user's profile Send private message Visit poster's website
JLS



Joined: Nov 05, 2005
Posts: 421
Location: Czech
Audio files: 23
G2 patch files: 275

PostPosted: Thu Jul 19, 2012 7:07 am    Post subject: Reply with quote  Mark this post and the followings unread

Hi brunov

Nice work two new modules is great for me.

Please some info about RndChaos module - this sound interesting - please test it again - true not working ? any chance ?

Many thanks info and your great work.

Kamil

_________________
Sorry my bad English Smile

http://jlswbs.blogspot.com
http://jlswbs.wordpress.com
http://jls.wbs.cz
Back to top
View user's profile Send private message Visit poster's website
Roland Kuit



Joined: Sep 29, 2003
Posts: 1091
Location: The Netherlands/Sweden
Audio files: 8
G2 patch files: 127

PostPosted: Thu Jul 19, 2012 8:39 am    Post subject: Reply with quote  Mark this post and the followings unread

Fantastic work Very Happy
_________________
Roland Kuit
----------------------------
composer|research|synthesis|sound design|lecturer
http://rolandkuit.com/
Back to top
View user's profile Send private message Send e-mail Visit poster's website
anigbrowl



Joined: Jan 21, 2008
Posts: 114
Location: San Francisco, USA
G2 patch files: 5

PostPosted: Sun Jul 29, 2012 4:22 pm    Post subject: Reply with quote  Mark this post and the followings unread

Amazing! I just downloaded the new version, and although I have some difficulty with the libUSB (because I am using AMD64?) I am looking forward to try the new modules.

Shocked
Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic
Page 1 of 3 [53 Posts]
View unread posts
View new posts in the last week
Goto page: 1, 2, 3 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » Clavia Nord Modular » G2 extended patches
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
e-m mkii

Please support our site. If you click through and buy from
our affiliate partners, we earn a small commission.


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
