Photo-Logic Multiplex
Post new topic   Reply to topic Moderators: mosc
Page 1 of 1 [3 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Author Message
JingleJoe



Joined: Nov 10, 2011
Posts: 876
Location: Lancashire, England
Audio files: 14

PostPosted: Mon Sep 03, 2012 3:49 am    Post subject: Photo-Logic Multiplex Reply with quote  Mark this post and the followings unread

This is my latest simple sound machine, works on a similar principle to my logic multiplex but with slightly altered functionality and greater depth of LFO control.
Schematics and photos are attached along with a sound demo Smile

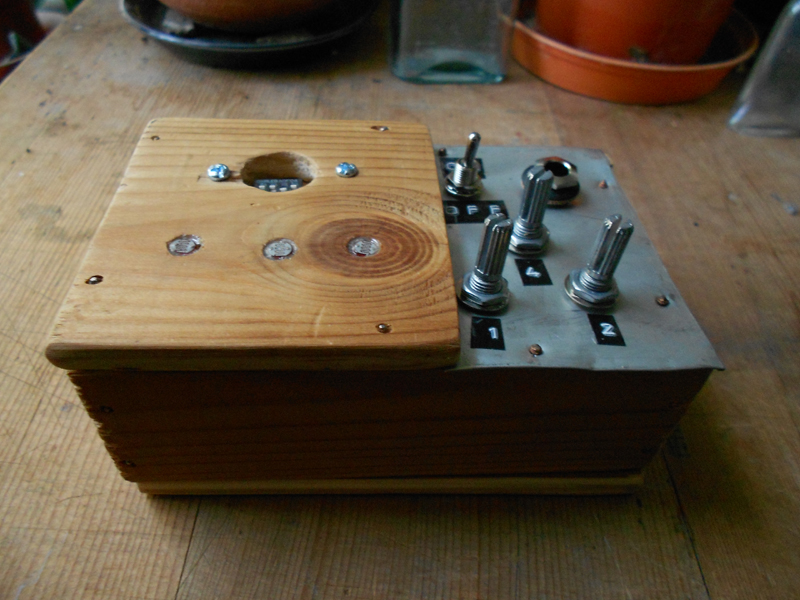

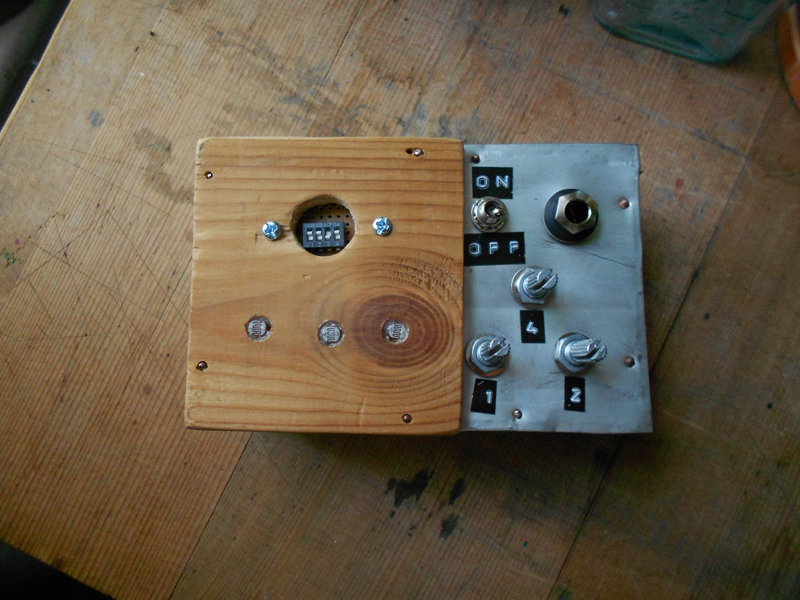

It utilizes a 40106 schmitt inverter to make 3 light controlled oscillators with LDRs (Light Dependant Resistors) and 3 LFOs which just use pots. These are connected to a 4051 multiplexer connected as a programmable gate or "ANY" gate. I had a DIP switch in some old electronics which I used as the switches in the diagram below. Scavenged wood and metal were used too, for the box Smile

P.S. it is also for sale!


GDAL photo logic multiplex circuit diagram.png
 Description:
 Filesize:  320.04 KB
 Viewed:  2112 Time(s)

GDAL photo logic multiplex circuit diagram.png



 Description:
 Filesize:  326.75 KB
 Viewed:  78 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




 Description:
 Filesize:  371.35 KB
 Viewed:  79 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




sound demo 6 mins.mp3
 Description:

Download
 Filename:  sound demo 6 mins.mp3
 Filesize:  4.89 MB
 Downloaded:  207 Time(s)


_________________
As a mad scientist I am ruled by the dictum of science: "I could be wrong about this but lets find out"


Green Dungeon Alchemist Laboratories
Back to top
View user's profile Send private message
Uncle Krunkus
Moderator


Joined: Jul 11, 2005
Posts: 4748
Location: Nambucca Heads, Australia
Audio files: 51
G2 patch files: 1

PostPosted: Mon Oct 15, 2012 4:52 am    Post subject: Reply with quote  Mark this post and the followings unread

Just saw this Joe.
That is one cool little artifact man! Cool

_________________
What makes a space ours, is what we put there, and what we do there.
Back to top
View user's profile Send private message Visit poster's website
tjookum



Joined: May 25, 2010
Posts: 353
Location: Netherlands
Audio files: 26

PostPosted: Mon Oct 15, 2012 1:56 pm    Post subject: Reply with quote  Mark this post and the followings unread

I love photocells for simple noise makers, cool idea to use it together with the 4051 for some rythmic variations. I really like your creations jinglejoe, cool stuff.
