Scott Bernardi Waveform animator, Timbre Modulator etc

[jojjelito]

Looking for the pictures/schematics for these, plus the Obesifier. Since Scott's site is gone and the Wayback Machine didn't cache those images it would be nice if someone had a copy.

Cheers!
J

Edit: Just FYI: I got the files from a very helpful member of the community. Many thanks!

However, I won't republish any of this unless we have a way of communicating with Scott B and getting permission.

Thanks for understanding.

[PickNick]

hi Jojjelito!

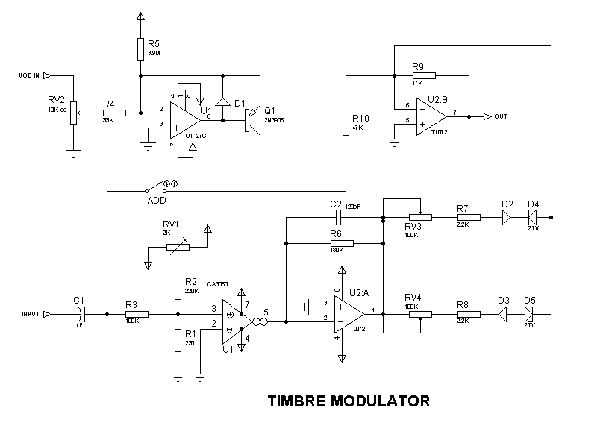

the timbre modulator is based on this schema>
http://electronotes.netfirms.com/EN72TM.pdf
Scott used OPA27...i think//instead of 307.
the files somewhere on my harddrive.
if i find then i will send it to you.
p

[jojjelito]

Hi PickNick!

I have to confess it's been a while since I looked at EN online. I have the full paper collection, but digesting all that will take a while on top of all the other experimentation I'm doing.

I did get the files I asked for from a forward-looking member so don't sweat your hard-drive treasure hunt I'm trying to page mr B in order to get his permission to re-publish these gems so that they don't get lost over time.

Cheers!
J

[fluxmonkey]

most of Scott's OG2 and OG3 pages are still available via the WayBack Machine: http://web.archive.org/web/20090214190834/http://home.comcast.net/~sbernardi/elec/og2/sitemap.html

[PickNick]

404...
here we goo...

---
