PostPosted: Thu Feb 28, 2013 2:52 pm    Post subject: TEST'O'CASE
Subject description: Breadboard flightcase DeluXe		 Reply with quote  Mark this post and the followings unread

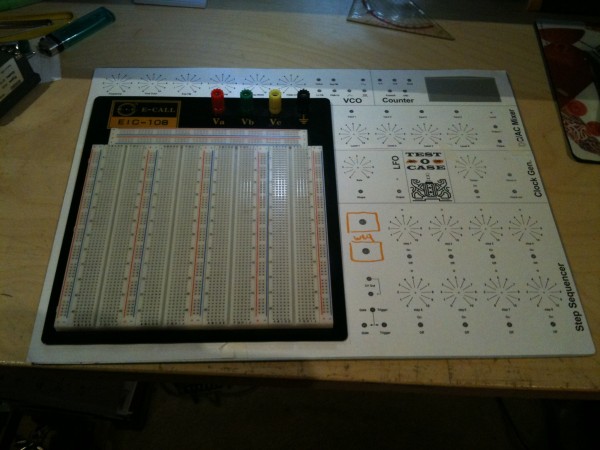

The plan is to build my breadboard into a case and add some modules.

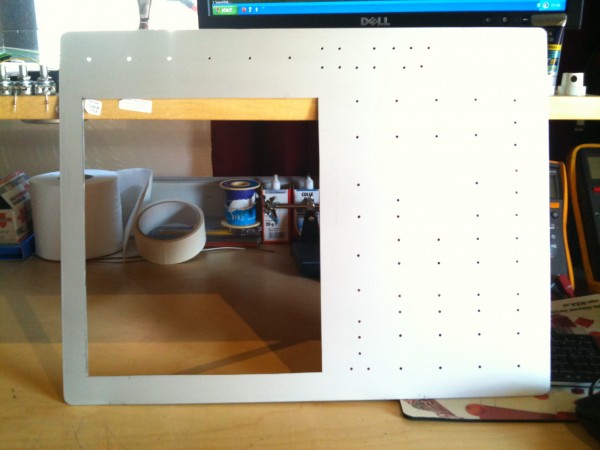

With FrontDesigner i created the art layout and i made a aluminium front
that fits the case.
The front panel is ready for the artwork.

The modules:
Clock generator
Sequencer 8 steps
DC/AC mixer
LFO
VCO
Counter module

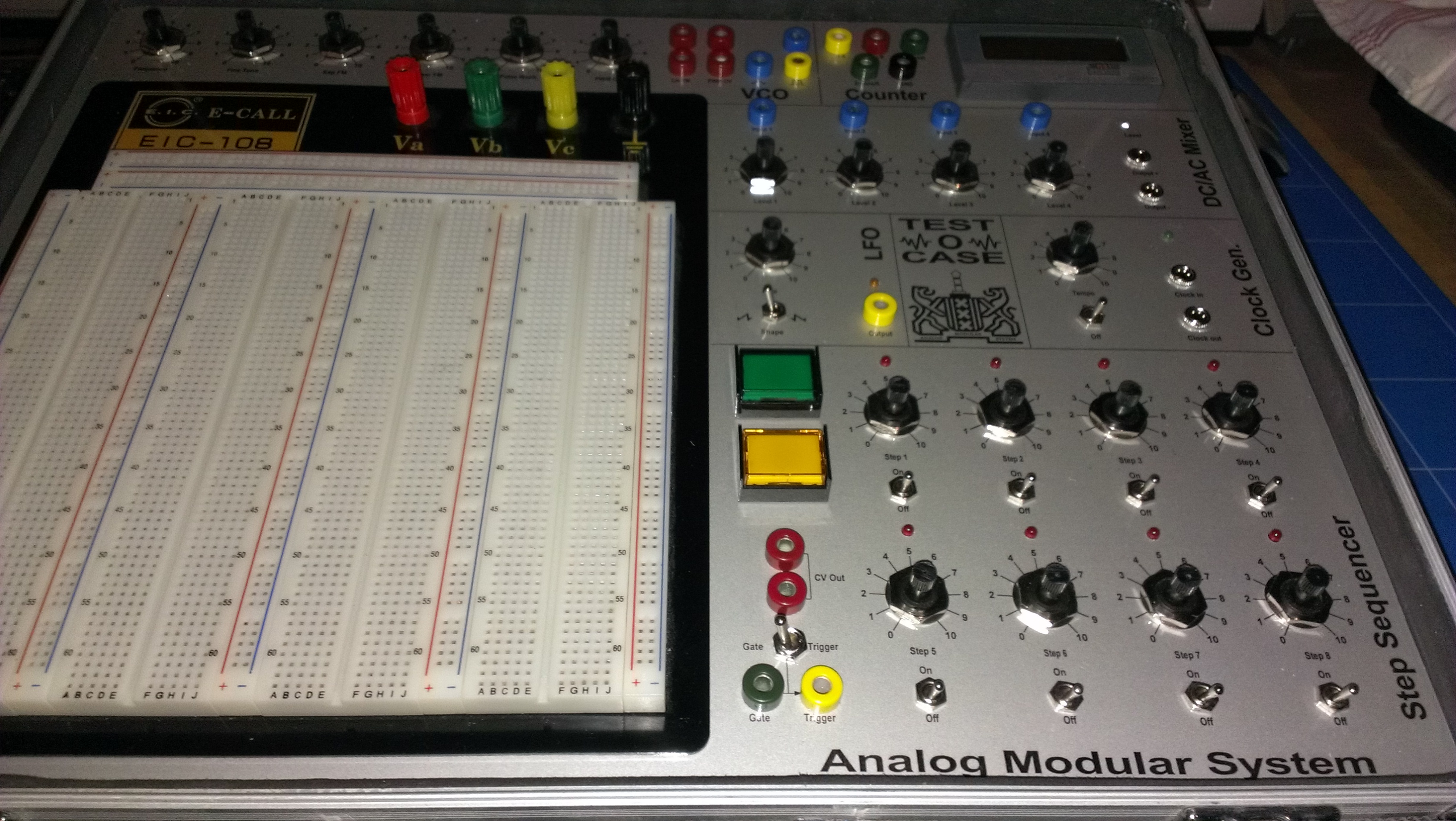

So far, TEST'O'CASE

Chris

 Description:
 Filesize:  1.11 MB
 Viewed:  286 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

 Description:
 Filesize:  802.12 KB
 Viewed:  270 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

 Description:
 Filesize:  1.02 MB
 Viewed:  269 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Back to top
View user's profile Send private message
KRS1972



Joined: Sep 27, 2012
Posts: 38
Location: Amsterdam
PostPosted: Wed Nov 27, 2013 4:57 pm    Post subject: Reply with quote  Mark this post and the followings unread

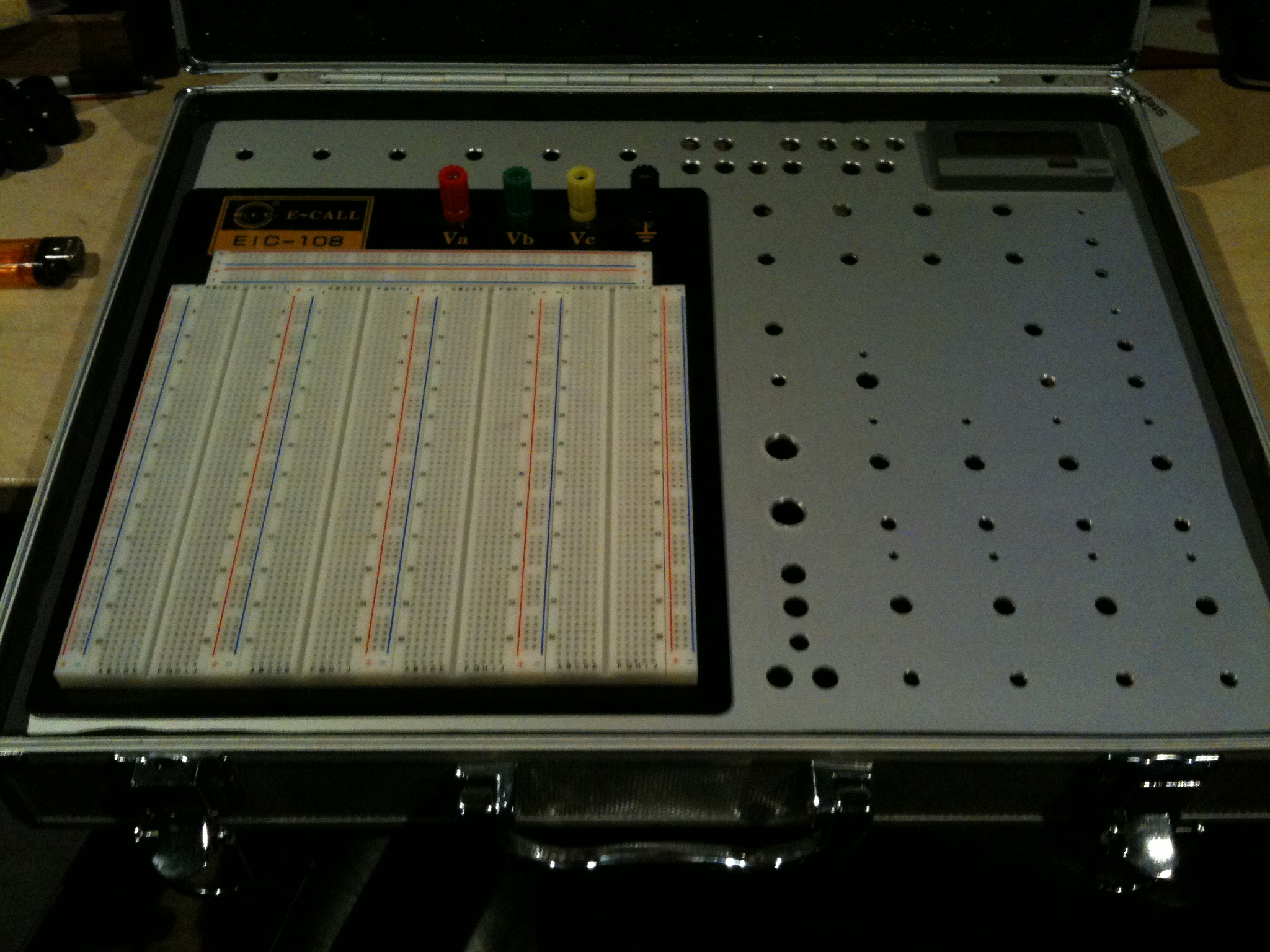

Update !

All the front panel parts fits and I also made the graphics.

toc 4.jpg
 Description:
 Filesize:  1.44 MB
 Viewed:  221 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

toc 4.jpg
toc 5.jpg
 Description:
 Filesize:  1.2 MB
 Viewed:  227 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

toc 5.jpg
Back to top
View user's profile Send private message
rumblin_cynth_rampo



Joined: Nov 15, 2012
Posts: 35
Location: Cardiff, Caerdydd, UK
PostPosted: Thu Nov 28, 2013 3:53 am    Post subject: Reply with quote  Mark this post and the followings unread
What a really cool idea. Ideal for someone strapped for space.
_________________
Ian "Lemmy" Kilmister on Hawkwind;
"Like Brahms but violent."
https://soundcloud.com/rumblin_cynth_rampo
Back to top
View user's profile Send private message
PHOBoS



Joined: Jan 14, 2010
Posts: 5849
Location: Moon Base
Audio files: 709
PostPosted: Thu Nov 28, 2013 4:40 am    Post subject: Reply with quote  Mark this post and the followings unread
looks very nice Very Happy
I have been meaning to build something similar myself, that is a breadboard a powersupply some oscillators maybe a small amp and what
ever else is useful, all packed together in a box.
_________________
"My perf, it's full of holes!"
http://phobos.000space.com/
SoundCloud BandCamp MixCloud Stickney Synthyards Captain Collider Twitch YouTube
Last edited by PHOBoS on Fri Nov 29, 2013 11:40 am; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger
Cynosure
Site Admin


Joined: Dec 11, 2010
Posts: 1004
Location: Toronto, Ontario - Canada
Audio files: 82
PostPosted: Fri Nov 29, 2013 11:27 am    Post subject: Reply with quote  Mark this post and the followings unread
That is an awesome idea.

You should stick one of these in there too:

http://www.gabotronics.com/development-boards/xmega-xprotolab.htm
Back to top
View user's profile Send private message
Varoudis



Joined: Dec 03, 2009
Posts: 31
Location: London
PostPosted: Fri Mar 28, 2014 3:06 pm    Post subject: Reply with quote  Mark this post and the followings unread
Wow quite amazing!

Any updates on this and info? I might want to build something similar for learning new tricks
Back to top
View user's profile Send private message
KRS1972



Joined: Sep 27, 2012
Posts: 38
Location: Amsterdam
PostPosted: Fri Apr 04, 2014 1:28 pm    Post subject: Reply with quote  Mark this post and the followings unread
Update !

Test'O'Case
Front panel is ready and I think it looks just fine.

The module I start with:
LFO (Musicfromoutherspace)
Soon more.

Greetz !
Chris

 Description:
 Filesize:  1.63 MB
 Viewed:  210 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

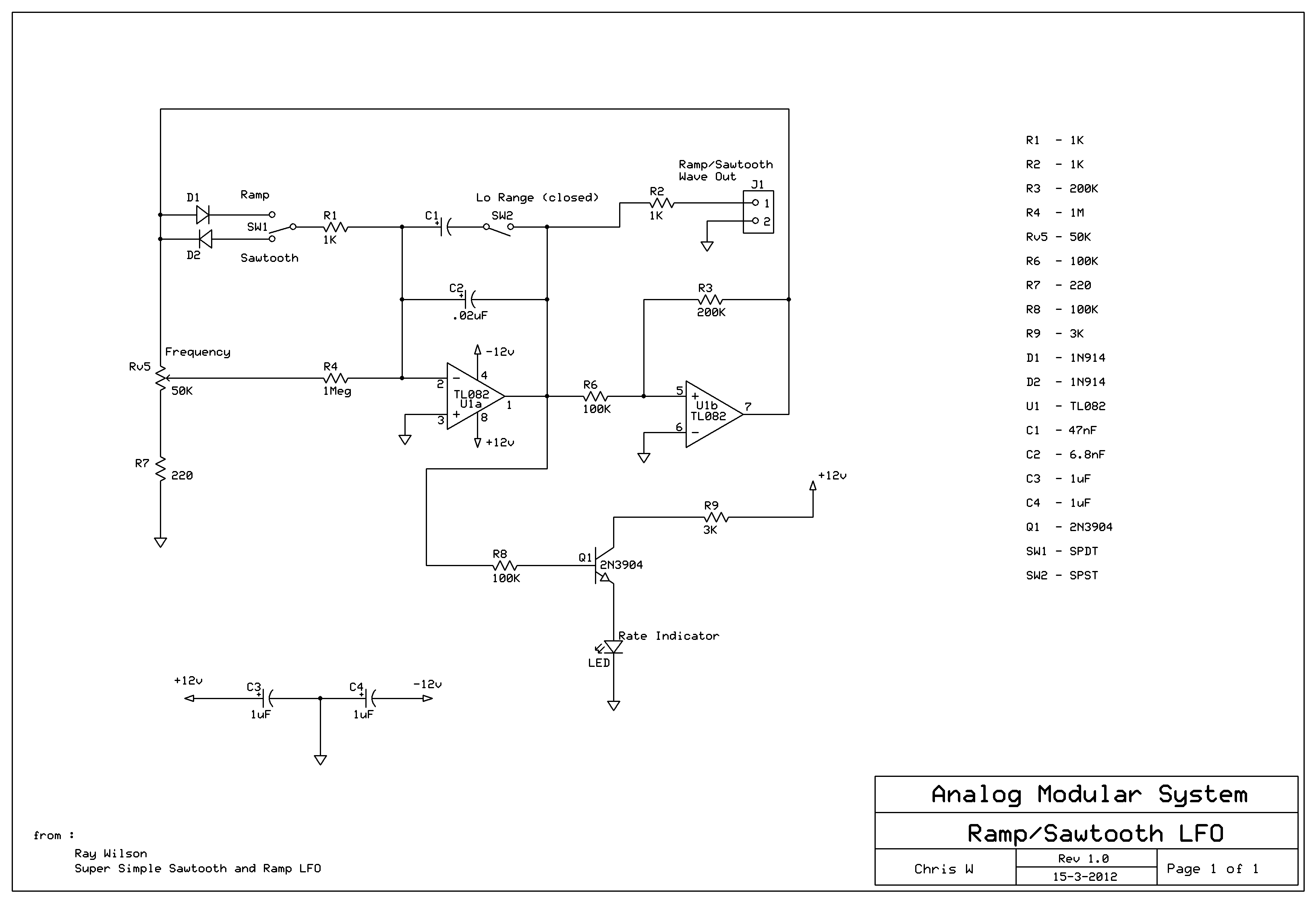

Super Simple Ramp and Sawtooth LFO.JPG
 Description:
 Filesize:  593.16 KB
 Viewed:  205 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Super Simple Ramp and Sawtooth LFO.JPG

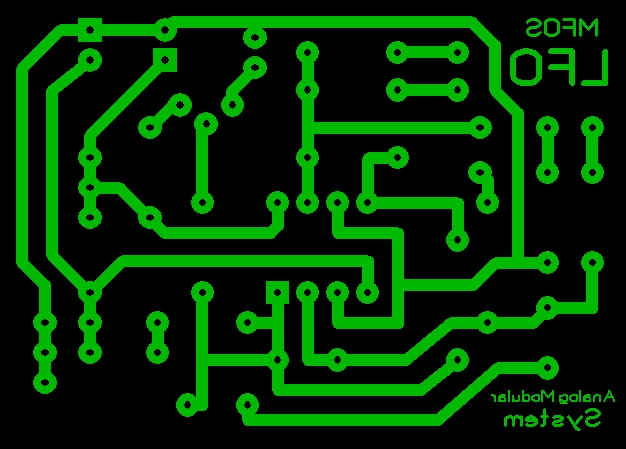

Super Simple Ramp and Sawtooth LFO PCB.JPG
 Description:
 Filesize:  146.95 KB
 Viewed:  211 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Super Simple Ramp and Sawtooth LFO PCB.JPG
Super Simple Ramp and Sawtooth LFO SILKSCREEN.JPG
 Description:
 Filesize:  163.16 KB
 Viewed:  190 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Super Simple Ramp and Sawtooth LFO SILKSCREEN.JPG
Back to top
View user's profile Send private message
