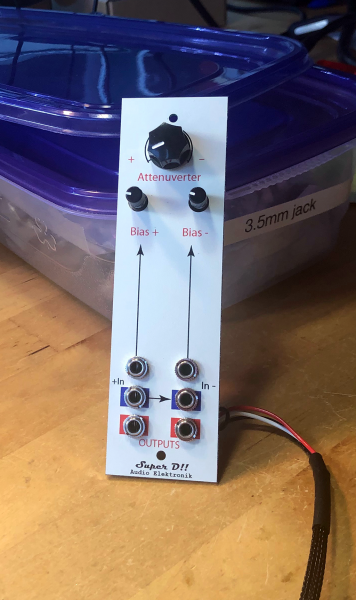

SEM style Attenuverter w/ bias offset

[cslammy]

Got this to work....

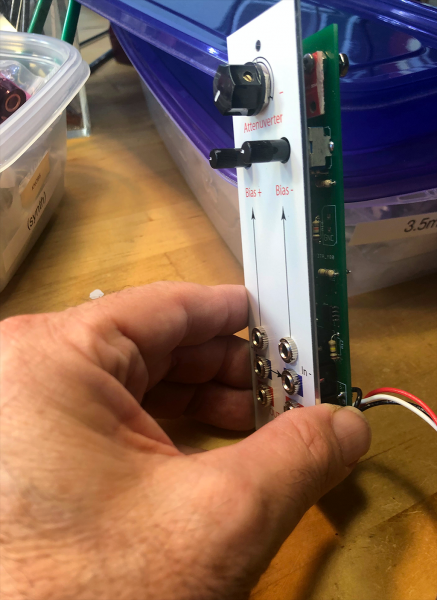

And it's my first skiff module....

blog posts:

part II here http://audiodiwhy.blogspot.com/2019/09/skiff-to-my-leiu-my-first-skiff.html

part I here http://audiodiwhy.blogspot.com/2019/08/attenuverter-part-i-prototyping-sem-way.html

Website (eagle files etc)
http://www.charlielamm.com/gear/gain/forums.html#attenu (let me know if the link gives you trouble....some users seem to not like the # part?)

Already sticking this same design (stripped down a bit) into a dual vactrol multimode VCF, I was going to put 4x CTPOT attenuverters in there. Will cover that in a coming post.

Hope this is useful for someone.

---

Description:
Filesize:	2.39 MB
Viewed:	315 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

Description:
Filesize:	2.07 MB
Viewed:	330 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[ixtern]

Looks cool and quite interesting.
