Groupbuy TR909 clone, 9090 components

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey,

All the packages have been sent of the previous groupbuy that I have organized. Again some people asked me to organize a new groupbuy. and....

I am starting a new groupbuy, you can put your name on the list by filling out the form on:
http://www.synthage.com/groupbuy/groupbuy.php

I am still on a vacation but as soon as I am back in February I will start sourcing the components again. The kit will be the more or less the same as the previous one.

Kind regards,

Jef

granoj · Joined: Jan 31, 2012 Posts: 6 Location: Finland

Hi, I`m interested. How much is it for the boards, IC`s and rare parts, approximately?

-Jarno

Dougster · Joined: Sep 20, 2005 Posts: 272 Location: Tucson, AZ, USA

I don't know how much Jef is charging for his parts kit, but you get the pcbs, the pic chip and the cymbal roms for 60 Pounds Sterling. More info at http://www.introspectiv.org.

Regards,
Doug

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey,

I am putting the boards in the kit for the exact same price as Trevor (65 Euro's), but the cool thing of a groupbuy is that you do not pay postal costs with every supplier. for example the postal charges of having one set of boards sent to you is 5 pounds, the postal charges of having 10 sets of boards sent to me is 4 pounds, which is 0.4 pounds for one set.
I am buying the components from 5 suppliers, they charge from 14 Euro's to 6 Euro's for postal costs. If you do the math, you are better of buying a complete set.

When I bought the components for my 9090, the bill was well over 400 Euro's without the boards! And this was after I've put all my spare time during two three weeks in finding the right components.

So I figured I could help people building this great Roland 909 clone with organizing a groupbuy. I used the list of my 9090 and started looking for better and less expensive components. I have also tried to put as much as possible high quality and original components with the correct lead distance in the kit. I have only replaced a few 7.5mm lead distance capacitors with 5mm ones because the price difference was ridiculous.

But of course there is a catch, I am hoping that 9090 owners would also like to enter the MB909 sequencer http://www.synthage.com/Sequencer/default.html groupbuy, once the sequencer is completely finished (I am now in the process of testing the boards I made at home with the toner transfer method). That way, I can also have a nice MB909 sequencer PCB for an affordable price

Having that said, I am still waiting for two price quotes for the rare parts.
As soon as I have the correct prices, I will post them on my website.

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

I have received all the prices for the components to populate the 9090 boards, but without transfo, without potmeters, without frontpanel, without MB909 sequencer.

The price for all the components including the rare parts= 250,00 Euro
The price for the 9090 boards with PIC's and PROM= 65,00 Euro
The price for postal charges= 17,95,00 Euro

I will calculate how much the price of the rare parts is as soon as possible.

I am still looking for an affordable potmeter set, as soon as I have sourced, I will post the price on this page.

I will close the groupbuy on the 14th of February then I'll order all the components and make the packages. Please be aware that making the packages is a huge job that takes a few weeks.

I have managed to get more or less the same components like the last groupbuy, which means that the original transistors and rare parts are in the kit. Again I have tried to have the highest amount of quality possible for this price. The IC sockets are of a really good quality (not the GS type), all the resistors are 1% tolerance, original 2,5% polystyrene capacitors are used, most other caps have tolerances of 5% and 10%, even the electrolytic caps are high temp, high quality, etc, etc...

http://users.telenet.be/MB909/

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey all,

I have added a reserve list for the TR909 clone - 9090 bulkorder.

You can find the list on: http://www.synthage.com/groupbuy/groupbuy.php

Cheers,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey everybody,

I am organizing a new 9090 groupbuy which will be closed mid May.
The groupbuy will be more or less the same as the previous ones, with original parts.

You can find more info (about the previous bulkorders) on:
http://www.synthage.com/groupbuy/groupbuy.php

Kind regards,

Jef

www.synthage.com

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

The bulkorder will be closed on the 7th of May.

Cheers,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey all,

I am organizing a new bulkorder for the 9090 (TR 909 clone). The bulkorder will be closed mid July, afterwards I'll send the kits out a soon as possible.

You can find more details on: http://www.synthage.com/ and http://www.synthage.com/groupbuy/groupbuy.php

Cheers,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

hey,

I only have two sets of the SA 798 G transistors for the 9090 bulkorder of July (which will be closed in about 10 days) The 9090 works perfect with the 1115 transistors as a replacement for the 4 SA 798's, but original is original! (PS: my 9090 is working fine without the SA 798's).

You can still join the bulkorder on: http://www.synthage.com/groupbuy/groupbuy.php

Cheers,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

The frontpanel for a rack mounted 9090 is ready: for more info: http://www.synthage.com/frontpanel/frontpanel.html

Cheers,

Jef
[/img]

rack front I complete.jpg

Description:

Filesize:

546.29 KB

Viewed:

374 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

sneakthief · Joined: Jul 24, 2006 Posts: 569 Location: Berlin

Looks like some nice work from Richard at www.frontplaten.net

He did my MB-808 front panel:

Posted Image, might have been reduced in size. Click Image to view fullscreen.

Posted Image, might have been reduced in size. Click Image to view fullscreen.

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

yes it is that Richard.

What do you think of the design and the fact that it is an overlay?

cheers,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey,

I've got a few extra kits from the July Group buy.
If you are interested: http://www.synthage.com/groupbuy/groupbuy.php

cheers,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey,

I have a few exta 9090 (909 clone) kits from the last bulkorder,
If you are interested, please fill out the form on http://www.synthage.com/groupbuy/groupbuy.php

Kind regards,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

hey all, I have installed a new forum on my website for the 9090. If you have questions about sourcing components, if you don't know why you only hear a click when triggering x instrument,.... but also when you want to post your solution to a problem or post your picutures of your finished 9090....you can now go to: http://www.synthage.com/Betaforum/PhPforum/forums.html

cheers,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey,

I have designed full colour aluminum frontpanels for the 9090, you can check them out at http://www.synthage.com/frontpanel/frontpanel.php

I am also finishing ordering the components for the next groupbuy!!

cheers,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey,

I still have some 9090 kits available.

cheers,

jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey,

I am starting a new groupbuy, you can put your name on the list by filling out the form on:
http://www.synthage.com/groupbuy/groupbuy.php

Kind regards,

Jef

Varoudis · Joined: Dec 03, 2009 Posts: 31 Location: London

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

that is correct

And I have made some changes:

New price for the 9090 kit including PCB's and potmeters= 325 Euro.
New 3mm Aluminum frontpanels also available.

you can check it out on http://www.synthage.com/groupbuy/groupbuy.php
Cheers,

Jef

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey guys,

I now also have the backpanels (and 19" rack enclosure to fit the front and backpanel)

you can find a few pictures here: rackpanels for a rackmounted 9090 drummachine

9090 built back.jpg

Description:

Filesize:

321.21 KB

Viewed:

196 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

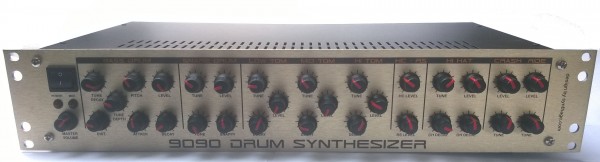

9090 built front.jpg

Description:

Filesize:

360.26 KB

Viewed:

214 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

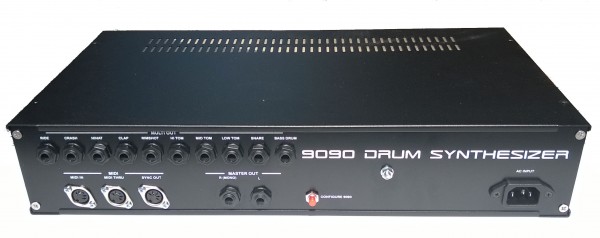

9090 rack back IV.jpg

Description:

Filesize:

309.72 KB

Viewed:

278 Time(s)

This image has been reduced to fit the page. Click on it to enlarge.

MB909 · Joined: Jan 25, 2012 Posts: 32 Location: belgium

Hey all,

Kits are available again, and I also have a built rackmounted 9090 for sale on ebay: http://www.benl.ebay.be/itm/-/201388078427?roken=6yUwWN

cheers,

Jef

jbeuckm · Posted: Mon Oct 05, 2015 8:41 am Post subject:

Is this a proper transformer for the 9090?

http://www.digikey.com/product-detail/en/VPT30-830/237-1326-ND/2090064
