ASM-2
Subject description: construction time again........ |
  |
|

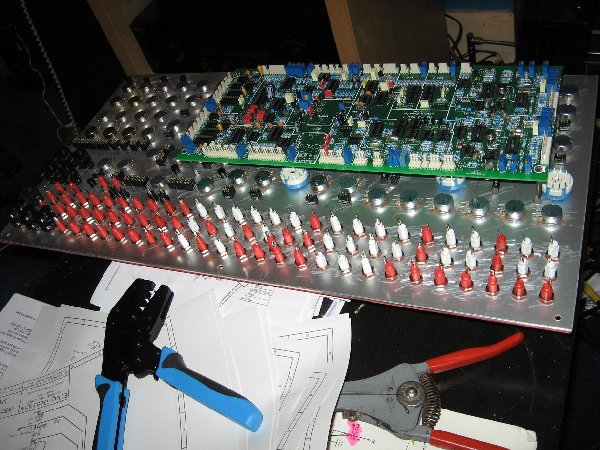

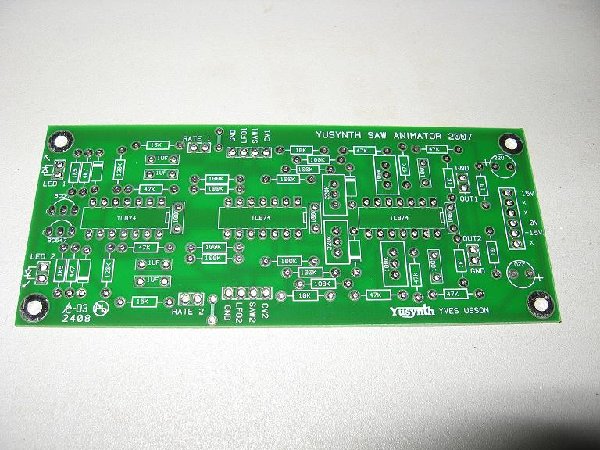

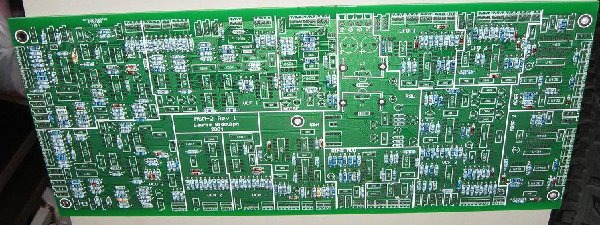

nearly there with the resistors & diodes, i've bought connectors for wiring properly instead of my usual crows nest of wires  , decided to go banana for patching with a few converters to 1/4 inch, i also got yusynth saw animator pcb from Bride Chamber to add to the final design, not sure whether to add ken stones sub osc pcb as well .
very good quality pcb from elby & Bride Chamber, good stuff.
| Description: |
|
| Filesize: |
108.05 KB |
| Viewed: |
555 Time(s) |
| This image has been reduced to fit the page. Click on it to enlarge. |
|
| Description: |
|
| Filesize: |
99.84 KB |
| Viewed: |
477 Time(s) |
| This image has been reduced to fit the page. Click on it to enlarge. |
|
|
|
|
Back to top
|
|
 |
Skrog Productions
Joined: Jan 07, 2009
Posts: 1194
Location: Scottish Borders
Audio files: 155
|
|
|
Back to top
|
|
|
fonik
Joined: Jun 07, 2006
Posts: 3950
Location: Germany
Audio files: 23
|
| Posted: Sun Oct 04, 2009 10:39 am Post subject:
|
|
|
huge project and nice layout. i am curious to see more pictures soon.
_________________
cheers,
matthias
____________
Big Boss at fonitronik
Tech Buddy at Random*Source |
|
|
Back to top
|
|
|
crochambeau
Joined: May 18, 2008
Posts: 31
Location: earth.
|
| Posted: Sun Oct 04, 2009 3:19 pm Post subject:
|
|
|
What are your front panel dimensions? I've got mine drafted out to fit 14u of standard rack space, yours looks much smaller than that. Nice work!
I'll post pics to this thread once I get the metal cut, the PCB itself is 97% stuffed. I've been nibbling away at this project for about a year now  |
|
|
Back to top
|
|
|
Skrog Productions
Joined: Jan 07, 2009
Posts: 1194
Location: Scottish Borders
Audio files: 155
|
| Posted: Mon Oct 05, 2009 10:23 am Post subject:
|
|
|
| fonik wrote: | | huge project and nice layout. i am curious to see more pictures soon. |
Thanks Matthias, took a few weekends to plan this one, i'm building a seperate power board to supply the asm & extras, i have made the box with iec fused socket to house it and have a torroidal Xfrmr ready to go in.
I'll add more pics as i go.
Cheers
Dave W |
|
|
Back to top
|
|
|
Skrog Productions
Joined: Jan 07, 2009
Posts: 1194
Location: Scottish Borders
Audio files: 155
|
| Posted: Mon Oct 05, 2009 10:33 am Post subject:
|
|
|
| crochambeau wrote: | What are your front panel dimensions? I've got mine drafted out to fit 14u of standard rack space, yours looks much smaller than that. Nice work!
I'll post pics to this thread once I get the metal cut, the PCB itself is 97% stuffed. I've been nibbling away at this project for about a year now |
Hi crochambeau, 3mm alum panel is 590mm X 300mm, a guilloteened off cut from my local engineers workshop with clean cut edges from using hydraulic cutter machine.

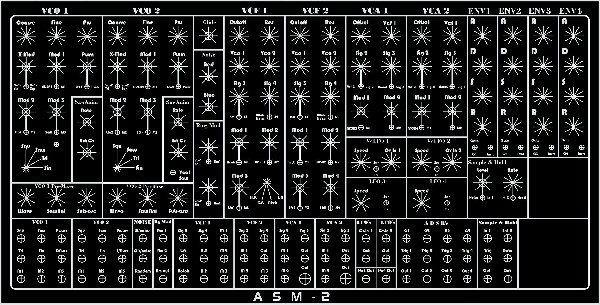

The design above will be lasered to vinyl sticker when finished, i thought i may have had room to fit a few lunetta circuits but i'm out of space already.
i would love to see pics of your asm, Uncle K's beast is amazing with the veneer effect. |
|
|
Back to top
|
|
|
analoguebus
Joined: Oct 26, 2009
Posts: 1
Location: Augusta GA
|
Posted: Tue Oct 27, 2009 5:48 am Post subject:
Re: ASM-2
Subject description: construction time again........ |
|
|
| Skrog Productions wrote: | nearly there with the resistors & diodes, i've bought connectors for wiring properly instead of my usual crows nest of wires , decided to go banana for patching with a few converters to 1/4 inch, i also got yusynth saw animator pcb from Bride Chamber to add to the final design, not sure whether to add ken stones sub osc pcb as well .
very good quality pcb from elby & Bride Chamber, good stuff. |
Yeah I have been working on an ASM-2 for a bit also but I keep moving to other projects and getting distracted. I need to just sit down and finish it. Mine is also banana. It took Elby and I a bit to figure out a way to get the banana jacks to fit in the pre-drilled holes. Finally a combination of washers and nuts worked out. And quality wise yes Elbys stuff is fantastic. It is almost over engineered. I love it. He has kept me supplied with quite a bit of stuff. I am working on a Sound Lab Ultimate also that he was able to get me the parts for. |
|
|
Back to top
|
|
|
Skrog Productions
Joined: Jan 07, 2009
Posts: 1194
Location: Scottish Borders
Audio files: 155
|
|
|
Back to top
|
|
|
gwaidan
Joined: Mar 07, 2009
Posts: 53
Location: Sydney, Australia
|
| Posted: Wed Nov 04, 2009 1:23 am Post subject:
|
|
|
| Wow, that's beautiful! I've got a board that's been complete for about a year but I've kept getting distracted by my Euro system, and that last step of the panel design and case has been a daunting one. I feel motivated again after seeing that... |
|
|
Back to top
|
|
|
Skrog Productions
Joined: Jan 07, 2009
Posts: 1194
Location: Scottish Borders
Audio files: 155
|
|
|
Back to top
|
|
|
Skrog Productions
Joined: Jan 07, 2009
Posts: 1194
Location: Scottish Borders
Audio files: 155
|
|
|
Back to top
|
|
|
Skrog Productions
Joined: Jan 07, 2009
Posts: 1194
Location: Scottish Borders
Audio files: 155
|
| Posted: Mon Nov 23, 2009 11:36 am Post subject:
|
|
|

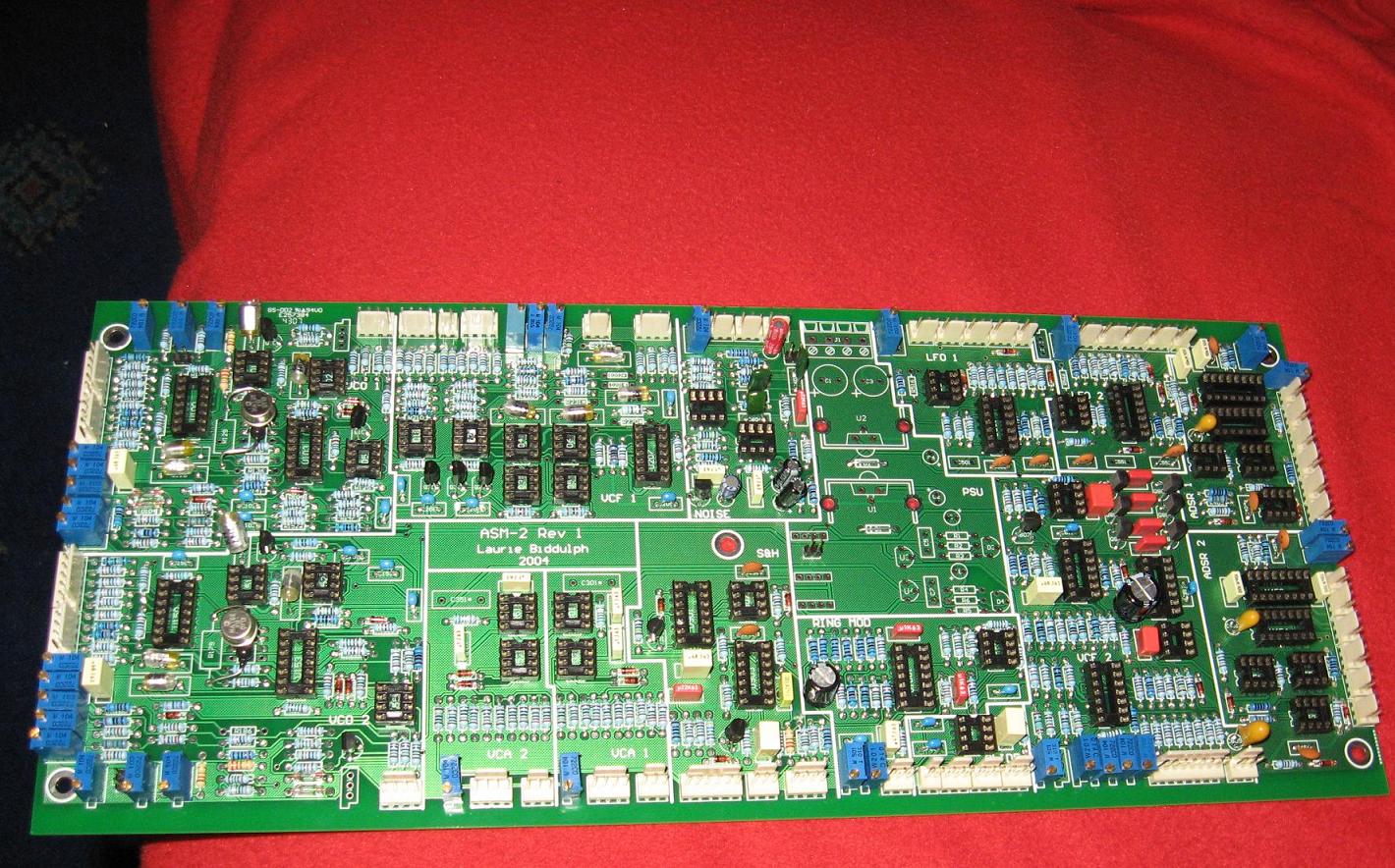

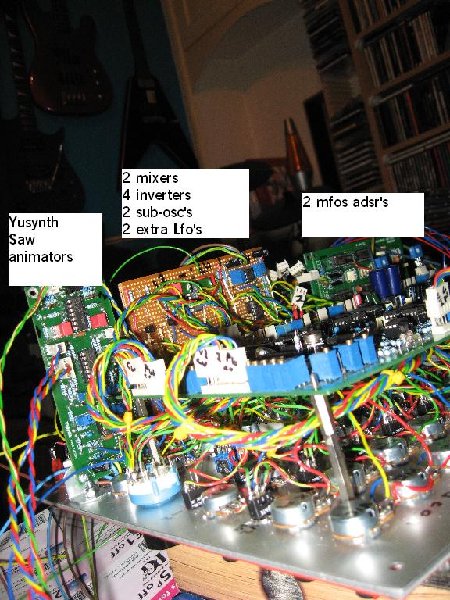

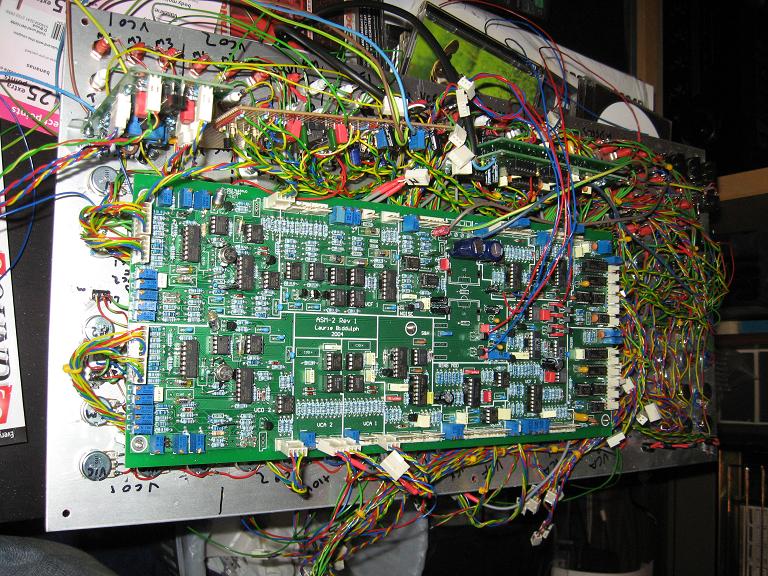

Nearly finished the wiring, then it's time for test & calibration and hopefully celebration , error dependant of course.
I've been getting home from work and resisting the lure of the couch to wire it up, probably annoying neighbors using a cordless drill to twist wire looms at nights , .
must tidy those wires with some zip ties.
| Description: |
|
| Filesize: |
151.85 KB |
| Viewed: |
525 Time(s) |
| This image has been reduced to fit the page. Click on it to enlarge. |
|
| Description: |
|
| Filesize: |
116.21 KB |
| Viewed: |
472 Time(s) |
| This image has been reduced to fit the page. Click on it to enlarge. |
|
|
|
|
Back to top
|
|
|
Skrog Productions
Joined: Jan 07, 2009
Posts: 1194
Location: Scottish Borders
Audio files: 155
|
Posted: Sun Nov 29, 2009 9:10 am Post subject:
ASM..2 "it's very, very musical"
Subject description: ASM-2 is making sounds |
|
|

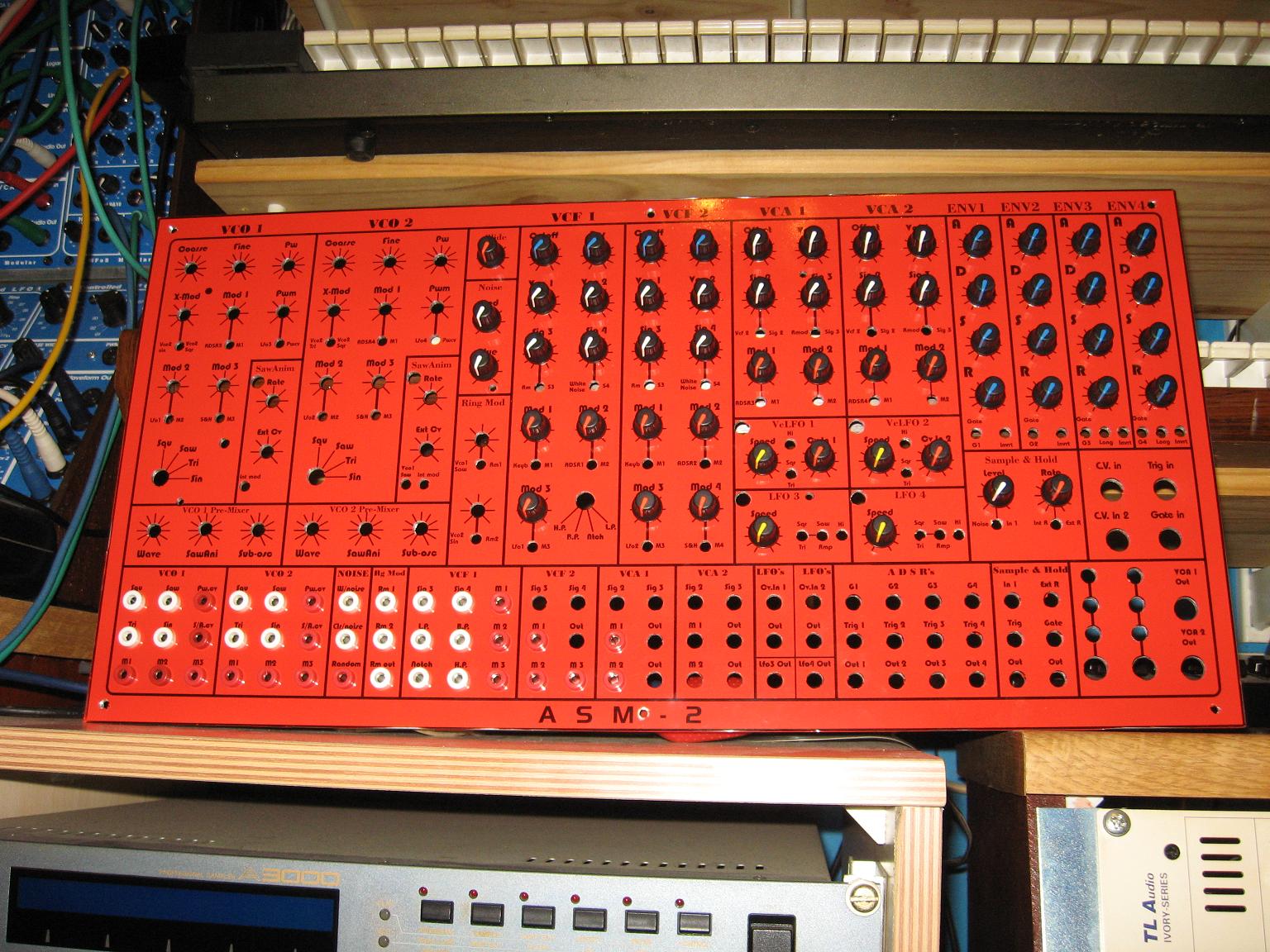

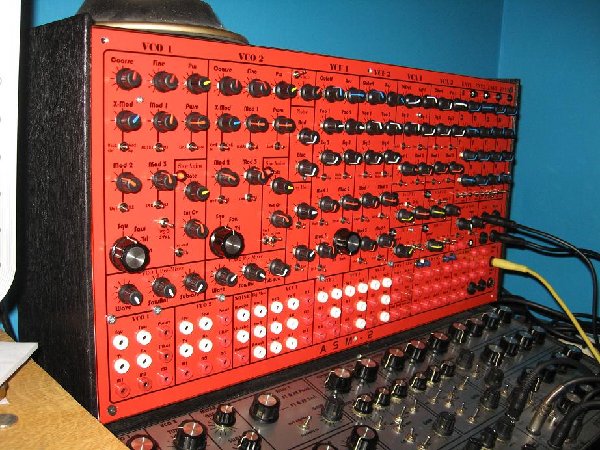

Worth the wait to get this synth up and running, i'm really impressed with the sounds and tones available on the ASM-2, adding 2 saw animators (thanks Yves & Bridechamber !) has ehanced the sound even further.
