PostPosted: Tue Jan 26, 2010 4:16 pm    Post subject: SoundLab + + Finished at last
Subject description: wiring complete , sounds are uploaded now
Reply with quote  Mark this post and the followings unread

A Re-worked, condensed version of my soundlab+ due to start soon.
I cannot seem to lay down the soldering iron at the moment, long may it last he he Smile.

Soundlab ++
extra things to be added to the previous plus version...
extra pwm / 2 sub osc's / ring mod / 8 chanel mixer (all waves & noise) / extra lfo and attenuators on all cv inputs.

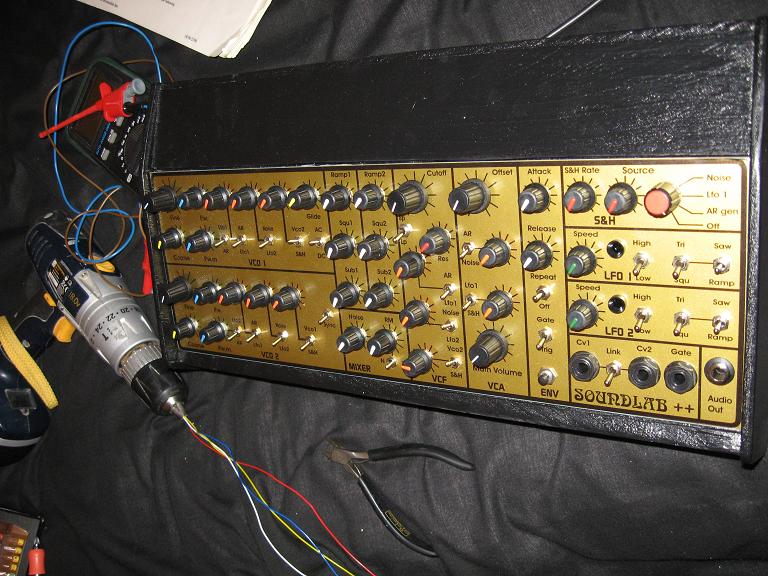

here's a pic of the box (to be painted satin black) , panel has been drilled but needs the sticker lanced for the pots & switches & sockets.

Dave. Very Happy


soundlab ++.JPG
 Description:
 Filesize:  143.05 KB
 Viewed:  428 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

soundlab ++.JPG



Last edited by Skrog Productions on Sat Mar 06, 2010 12:42 pm; edited 2 times in total
Back to top
View user's profile Send private message
isak



Joined: Dec 13, 2009
Posts: 847
Location: Israel
Audio files: 18

PostPosted: Wed Jan 27, 2010 5:52 am    Post subject: Reply with quote  Mark this post and the followings unread

WOW Skrog that looks amazing !!!! Shocked

i wish i new how to add sub osc's and extra lfo and extra envelope. Sad
i wish u the best with the upcomming project, good luck and dont forget to update!!! Very Happy

Isak.

_________________
http://www.myspace.com/mgmtrance
Back to top
View user's profile Send private message
mtec



Joined: Nov 07, 2009
Posts: 30
Location: Snowy Mountions, Australia

PostPosted: Wed Jan 27, 2010 4:14 pm    Post subject: Reply with quote  Mark this post and the followings unread

Look's Brilliant, I really dig wooden case's!
like Isak said "i wish i new how to add sub osc's and extra lfo and extra envelope" is there some way you could enlighten us?
Also are you going to use a power supply?

Nice Work!
Back to top
View user's profile Send private message
LektroiD



Joined: Aug 23, 2008
Posts: 1018
Location: Scottish Borders
Audio files: 2
G2 patch files: 2

PostPosted: Wed Feb 10, 2010 8:51 pm    Post subject: Reply with quote  Mark this post and the followings unread

Superb! I look forward to hearing a demo when it's finished Wink
_________________
LektroiD
Back to top
View user's profile Send private message Visit poster's website
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Mar 06, 2010 7:08 am    Post subject: Reply with quote  Mark this post and the followings unread

isak wrote:
WOW Skrog that looks amazing !!!! Shocked

i wish i new how to add sub osc's and extra lfo and extra envelope. Sad
i wish u the best with the upcomming project, good luck and dont forget to update!!! Very Happy

Isak.



Hey thanks Isak, just finished the build, i'm going to post the details shortly.

Dave
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Mar 06, 2010 7:14 am    Post subject: Reply with quote  Mark this post and the followings unread

mtec wrote:
Look's Brilliant, I really dig wooden case's!
like Isak said "i wish i new how to add sub osc's and extra lfo and extra envelope" is there some way you could enlighten us?
Also are you going to use a power supply?

Nice Work!



Thanks mtec , case is now drenched in black satin paint Smile .
No internal power supply +9V / 0V / -9V comes in from a big external unit i built that feeds the modular system / Soundlab + + / future expansion of the modular Very Happy .

Dave
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Mar 06, 2010 7:16 am    Post subject: Reply with quote  Mark this post and the followings unread

LektroiD wrote:
Superb! I look forward to hearing a demo when it's finished Wink


Hi Lektroid , thanks , sounds to appear later today , just doing the finishing tweaks to the synth Smile

Dave
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Mar 06, 2010 7:49 am    Post subject: Reply with quote  Mark this post and the followings unread

Soundlab + + finished, hurray, my wiring enthusiasm levels are low now but it's going to be a worthy addition to the diy collection.

From Soundlab + to Soundlab + +......

Cloned the PWM section of the soundlab vco 2 to give vco 1 PWM & pulse out.

Built a simple 8 Channel audio mixer (from ray's odd's & end's section). Mixer level pots for vco1 ramp / vco1 pulse / vco1 sub.
Mixer level pots for vco2 ramp / vco2 pulse / vco2 sub.
Mixer level pots for Noise & Ring mod.

Cloned LFO on Soundlab schematic to give LFO2.

Built on perf board 2 of Roman Sowa's Frequency dividers using just the divide by 2 & divide by 4 (switchable on/off mixed with divide by2).

populated Mfos micro S&H.

Built the simple Ring mod from Mfos site , the analog devices AD633, and 2 simple pre-amps to boost the soundlab ramps for its 10V p/p inputs.

Attenuators on every cv input, 4 per vco , 3 on the vcf , 2 on the vca, allowing to dial in very small modulations to give bass sounds as thick as a recently over fed anaconda Laughing

Here's some pics , sounds to follow later on.

Thanks for looking.

Dave

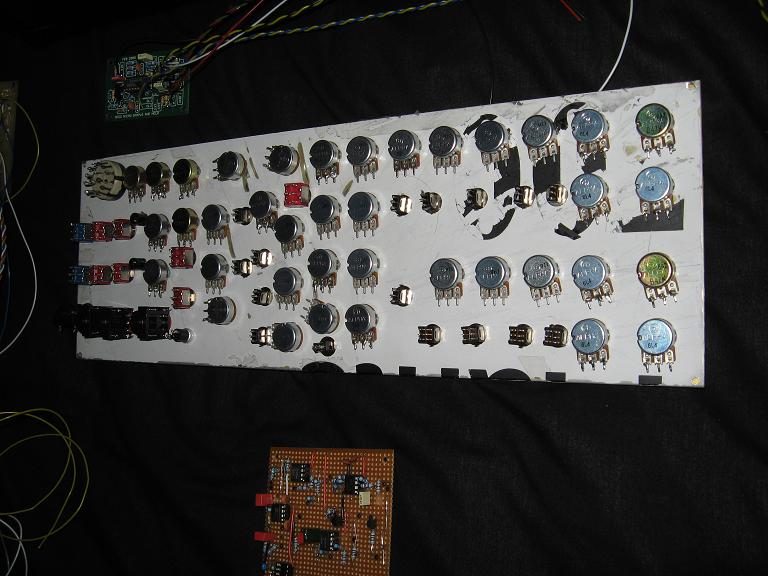

Nearly ready to wire up.JPG
 Description:
 Filesize:  74 KB
 Viewed:  359 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Nearly ready to wire up.JPG



Mods & add on's.JPG
 Description:
 Filesize:  118.4 KB
 Viewed:  361 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Mods & add on's.JPG

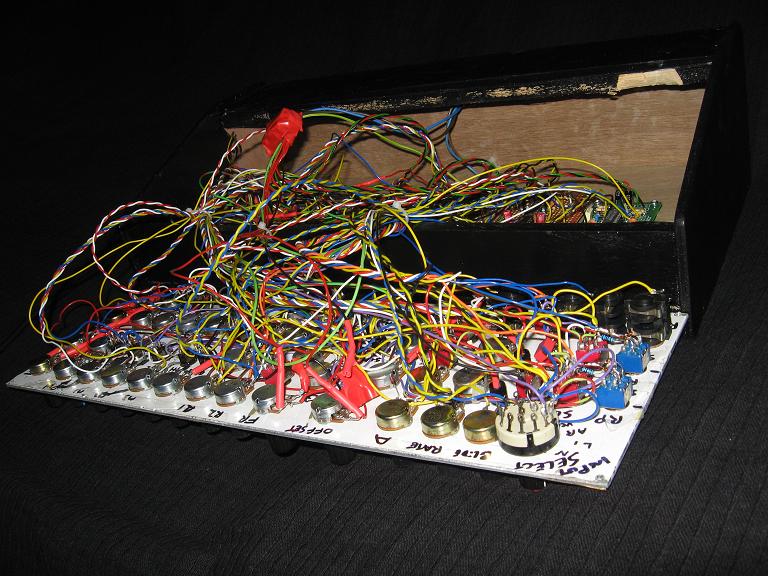

twisting more cable looms.JPG
 Description:
 Filesize:  103.43 KB
 Viewed:  371 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

twisting more cable looms.JPG


Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Mar 06, 2010 7:54 am    Post subject: Reply with quote  Mark this post and the followings unread

Soundlab + +


inside Soundlab ++.JPG
 Description:
 Filesize:  320.81 KB
 Viewed:  344 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

inside Soundlab ++.JPG



need some zip-tie's.JPG
 Description:
 Filesize:  106.33 KB
 Viewed:  378 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

need some zip-tie's.JPG



Soundlab ++.JPG
 Description:
 Filesize:  223.5 KB
 Viewed:  389 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Soundlab ++.JPG



Soundlab ++ vco's.JPG
 Description:
 Filesize:  193.39 KB
 Viewed:  405 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Soundlab ++ vco's.JPG


Back to top
View user's profile Send private message
RF



Joined: Mar 23, 2007
Posts: 1502
Location: Northern Minnesota, USA
Audio files: 28

PostPosted: Sat Mar 06, 2010 9:10 am    Post subject: Reply with quote  Mark this post and the followings unread

That's really nice - Wonderful panel!
Congrats on the great build!

bruce

_________________
www.sdiy.org/rfeng

"I want to make these sounds that go wooo-wooo-ah-woo-woo.”
(Herb Deutsch to Bob Moog ~1963)
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Mar 06, 2010 10:13 am    Post subject: Reply with quote  Mark this post and the followings unread

Hi Bruce
Thanks for the comments Very Happy , there was a small selection of faults on my part after first switch on , but everything is ironed out now Smile

Dave
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Mar 06, 2010 12:22 pm    Post subject: Reply with quote  Mark this post and the followings unread

Some sounds .....

recorded just the soundlab on it's own, no reverb or fx just the synth.


Who needs 'synths' like that !!!.mp3
 Description:
classic electro pop melody played via midi 2 cv to the Soundlab starts with 2 ramps & 2 pulses then 2 sub osc's come in (div./2) then switch div./4 in before the verse

Download
 Filename:  Who needs 'synths' like that !!!.mp3
 Filesize:  1.04 MB
 Downloaded:  1139 Time(s)


Mfos 16 stp sequencer running Soundlab.mp3
 Description:
MFOS 16 step sequencer gate & cv controlling the soundlab while i fool around with the dials

Download
 Filename:  Mfos 16 stp sequencer running Soundlab.mp3
 Filesize:  1.36 MB
 Downloaded:  1135 Time(s)

Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Mar 06, 2010 12:30 pm    Post subject: Reply with quote  Mark this post and the followings unread

capable of high cheese pop to scary dark drones there really is something for everyone with 'The SOUNDLAB' , loving this build loads Very Happy Very Happy


From tones to nightmares.mp3
 Description:
finding out how many modulations i can impose on the soundlab , noodly in places , no keyboard cv just the soundlab running it's self

Download
 Filename:  From tones to nightmares.mp3
 Filesize:  7.01 MB
 Downloaded:  1186 Time(s)

Back to top
View user's profile Send private message
isak



Joined: Dec 13, 2009
Posts: 847
Location: Israel
Audio files: 18

PostPosted: Mon Mar 08, 2010 4:18 pm    Post subject: Reply with quote  Mark this post and the followings unread

Skorg my friend i have no words man, simply a beauty machine!

Isak.

_________________
http://www.myspace.com/mgmtrance
Back to top
View user's profile Send private message
wmonk



Joined: Sep 15, 2008
Posts: 528
Location: Enschede, the Netherlands
Audio files: 15

PostPosted: Mon Mar 08, 2010 4:29 pm    Post subject: Reply with quote  Mark this post and the followings unread

Nice Dave! You're really productive Smile Nice goldish colour you have there.
Will listen to the tunes tomorrow Smile

_________________
Weblog!
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Tue Mar 09, 2010 12:55 pm    Post subject: Reply with quote  Mark this post and the followings unread

Thank you Isak , now to make some music with it Smile
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Tue Mar 09, 2010 1:28 pm    Post subject: Reply with quote  Mark this post and the followings unread

Hi Thomas , hey thanks , got 4 more small mods to do on the modular, then i'm digging the downhill bike out the shed and heading for some hills Smile
Back to top
View user's profile Send private message
droffset



Joined: Feb 02, 2009
Posts: 515
Location: London area
Audio files: 2

PostPosted: Tue Mar 09, 2010 1:42 pm    Post subject: Reply with quote  Mark this post and the followings unread

Really nice work, and it sounds great too!
_________________
==================
Check out the FREE Intro to Lunettas Document
https://docs.google.com/document/d/1V9qerry_PsXTZqt_UDx7C-wcuMe_6_gyy6M_MyAgQoA/edit?usp=sharing

Edit: Spelling mistakes.
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Fri Mar 12, 2010 6:17 am    Post subject: Reply with quote  Mark this post and the followings unread

droffset wrote:
Really nice work, and it sounds great too!



Hi Dr Offset, how are you ?

Thanks for the comments Smile .

hope all is going well with your drum synth.

Dave.
Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: dnny, Uncle Krunkus, v-un-v
Page 1 of 1 [19 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software » MusicFromOuterSpace.com designs by Ray Wilson
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
