New yutility module

yusynth · Joined: Nov 24, 2005 Posts: 1314 Location: France

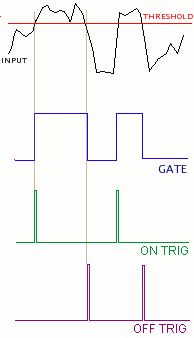

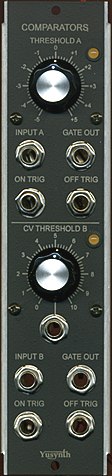

Here is a new YUSYNTH utility module.
It is a dual COMPARATOR module to create GATE signal and pulses from another source of signal. It can be used either to process modulation CVs or audio signal (though it's not a GATE extractor as it can be found with envelope followers).

Enjoy it at :

http://yusynth.net/Modular/EN/COMPARATORS/index.html


Description:

Filesize:

4.1 KB

Viewed:

9650 Time(s)


Description:

Filesize:

18.95 KB

Viewed:

9651 Time(s)

Pehr · Posted: Mon Feb 25, 2008 6:35 am Post subject:

Nice!

And it contains LM324 too Very Happy

bugbrand · Posted: Mon Feb 25, 2008 6:37 am Post subject:

Looks great Yves! A really useful module, very nicely presented. And don't think I've seen an Off Trig before - seems like a great addition. Dual modules always rule, too (two.!.)

RF · Posted: Mon Feb 25, 2008 7:20 am Post subject:

Thanks for this! Very nice.

frijitz · Posted: Mon Feb 25, 2008 8:46 am Post subject:

Ooooooops. Sorry! That was intended as a PM. Embarassed

yusynth · Joined: Nov 24, 2005 Posts: 1314 Location: France

what is TGTSH ?

EDIT : OK Ian, I've just checked your site and found the TGTSH, and yes they have some common functionalities threshold, GATE and onset trig.

frijitz · Posted: Mon Feb 25, 2008 9:06 am Post subject:

That's a nice circuit, Yves. From feedback I've gotten, the end trigger is a feature that many will find useful.

Very Happy

Ian

neandrewthal · Joined: May 11, 2007 Posts: 672 Location: Canada

Very nice. Just curious, what would it sound like if you ran it audio frequencies?(if this is even possible). Some kind of wacky, pitch shifting PWM?

yusynth · Joined: Nov 24, 2005 Posts: 1314 Location: France

Well if you use the GATE OUT only it will sound just like PWM. Now if you combine the three outputs with an inverting/direct mixer and tweak the polarization (invert sign or direct) of the various signals I guess (I haven't tried it yet) you would obtain a mixture between PWM and SYNC effects. I'll give it a try...

yusynth · Joined: Nov 24, 2005 Posts: 1314 Location: France

Used as a controller one may imagine interesting patches such as feeding
the input with white or pink noise, and feeding the ON TRIG pulse to a Band-pass VCF set to high resonance and modulated by some LFO or wandering CV, and sending the OFF TRIG pulse to another Band-pass VCF set to high resonance and modulated by another LFO. This way one gets two independant alternating dropping water stereo sounds.

Or feeding the INPUT with a slow random CV and using the ON TRIG to clock a step sequencer,and the OFF TRIG to clock a second step sequencer. This way one would get two random clocked intermangling sequences.
