MIDI Channel Changer (MCC) by sMs Audio Electronics
Subject description: .. accessory board for digitally selecting MIDI channels for your projects ... |
  |
|

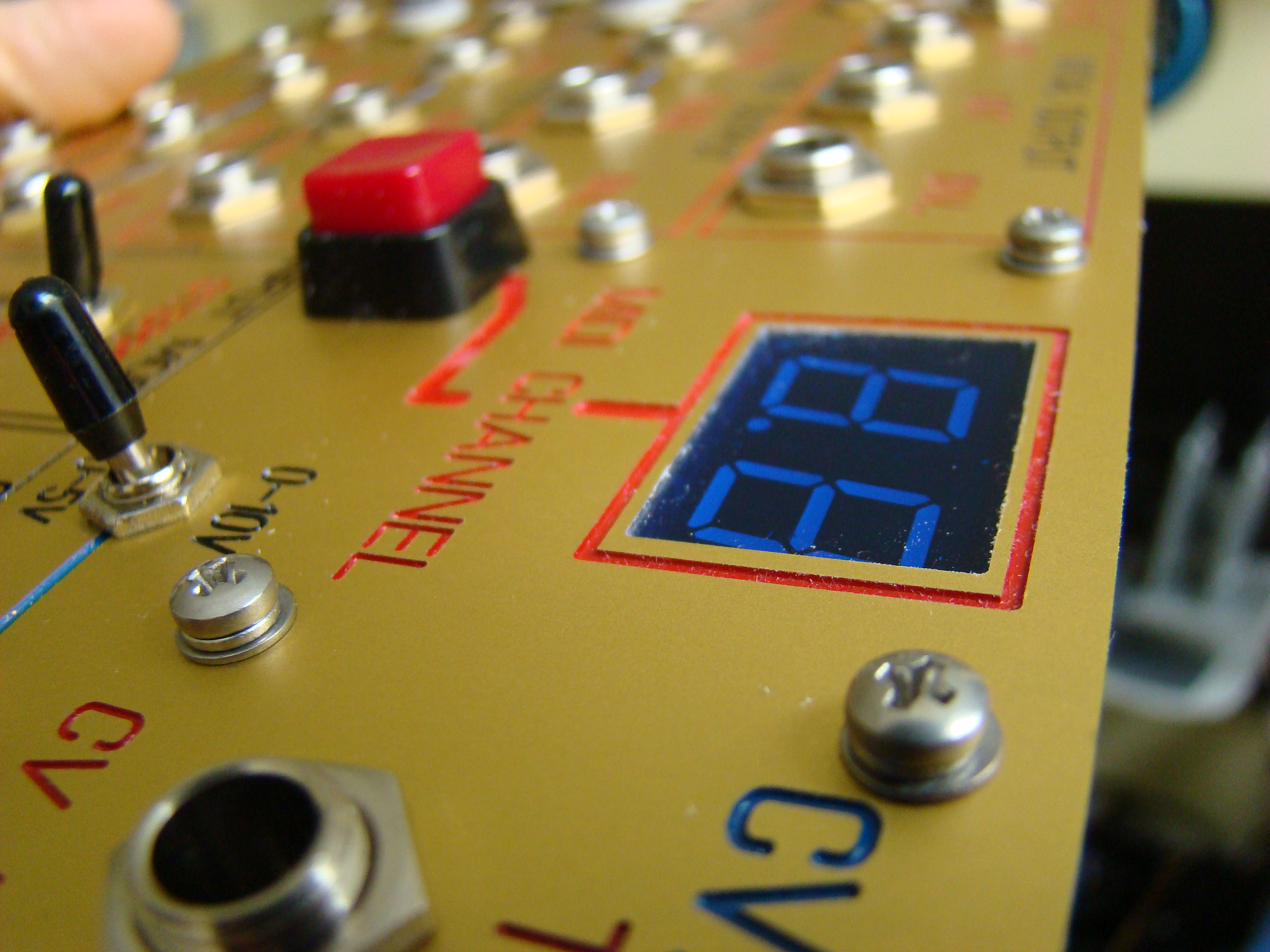

Here is a nice little add-on board you can use for your MIDI based projects. It's a small electronics board that mounts to your front panel and houses electronics that will display a MIDI channel on two blue 7 segment digital displays, from 1 through 16 and outputs a 4 bit TTL Level select logic to your circuit in correspondence to the channel displayed. I figured why use DIP switches, rotary switches, or other more arcane methods for MIDI channel selection when a nice display with digital select logic will do nicely. You can use it for new projects OR you can use it to retrofit any older equipment.
Also available is a mounting kit with blue filter bezel for a nice professional look.
The complete details are in the attached PDF document.
MCC's are $26.00 built and tested
MCC hardware Kit with Blue Filter $6.00
MCC Chip is available for $10.00
MCC connecting harness kit with 8 24" leads, 8 position female Housing, and 9 crimp pins $5.00
AVAILABLE AND READY TO SHIP .... NO WAIT ....
Shipping is $4.80 to US/CAN Flat rate for 1 or 10 units ....
Shipping to all other destinations worldwide is $8.00 .....
The sMs Paypal address is:
billnrob@optonline.net
....... oh yes, the HEX code is available on request of you want to roll your own as this is a public domain project ... the PDF has schematic and source code listing written in "PB Pro" for general understanding but you will want to just flash the code into the device.
