Dub Siren Schematic---Please check this schematic
Post new topic   Reply to topic
Page 1 of 1 [1 Post]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Author Message
Dr. K



Joined: Jan 15, 2020
Posts: 52
Location: wisconsin

PostPosted: Fri May 22, 2020 3:59 pm    Post subject: Dub Siren Schematic---Please check this schematic Reply with quote  Mark this post and the followings unread

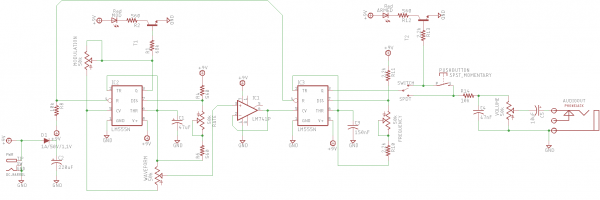

My parts just came in to try and put this thing together. The schematic looks ok--I saw 2 of them that are the same (drawn differently, but same components).

The weird thing is--isn't the output capacitor installed backwards? Shouldn't the negative end go towards the output jack?

If not, why not? I've never seen this orientation before.


schematic (1).png
 Description:
 Filesize:  22.79 KB
 Viewed:  327 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.
