and some more photos,..

---

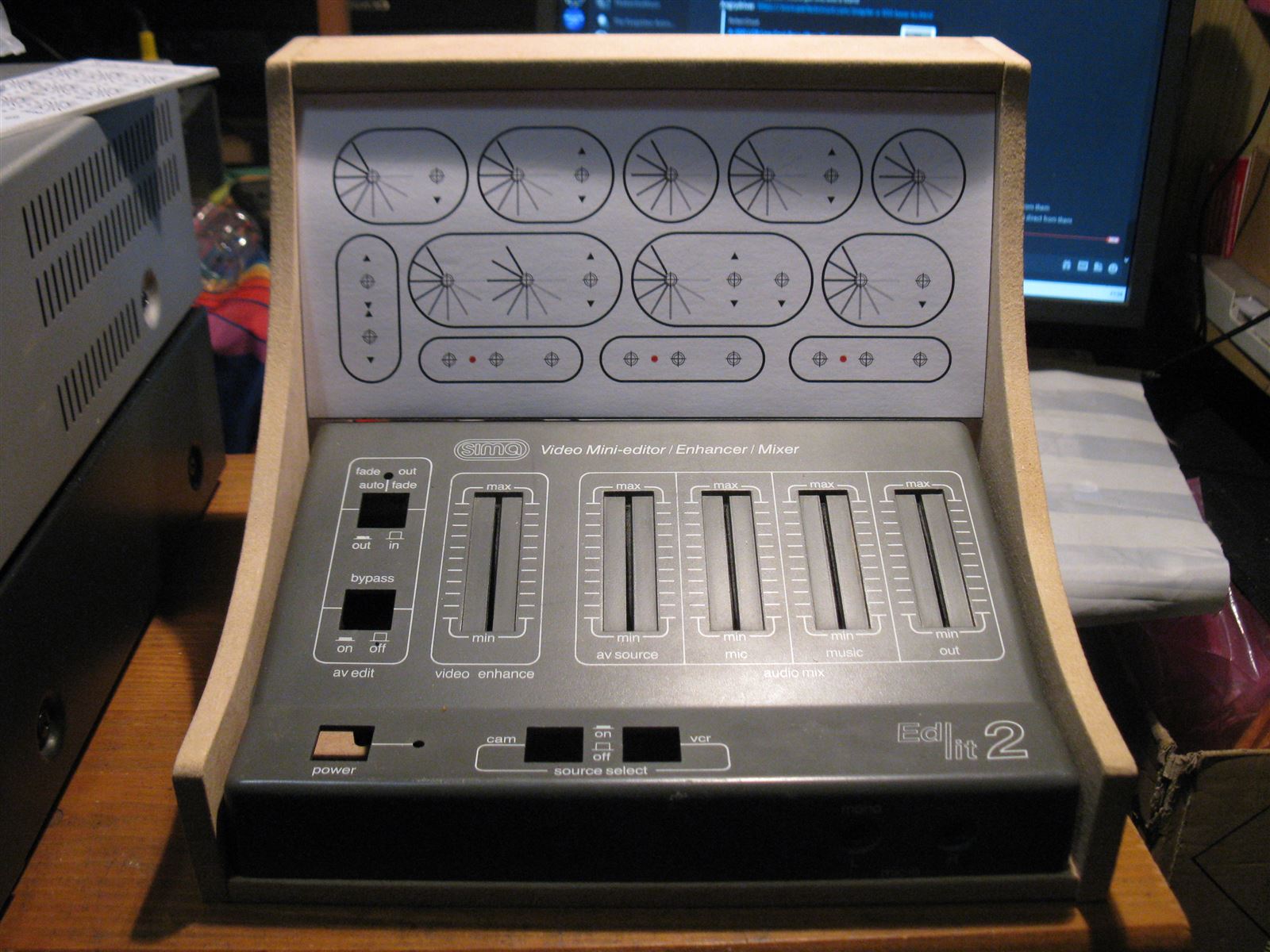

SIMA edit2 - WIP [20220212].jpg
Description:
Filesize:	240.57 KB
Viewed:	138 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

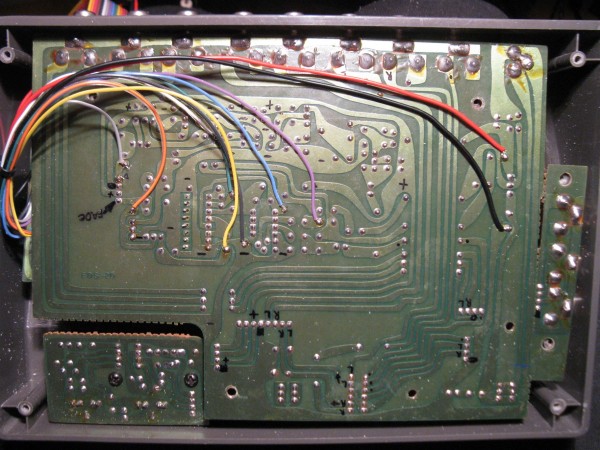

SIMA edit2 - WIP [20220527].jpg
Description:
Filesize:	418.51 KB
Viewed:	142 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

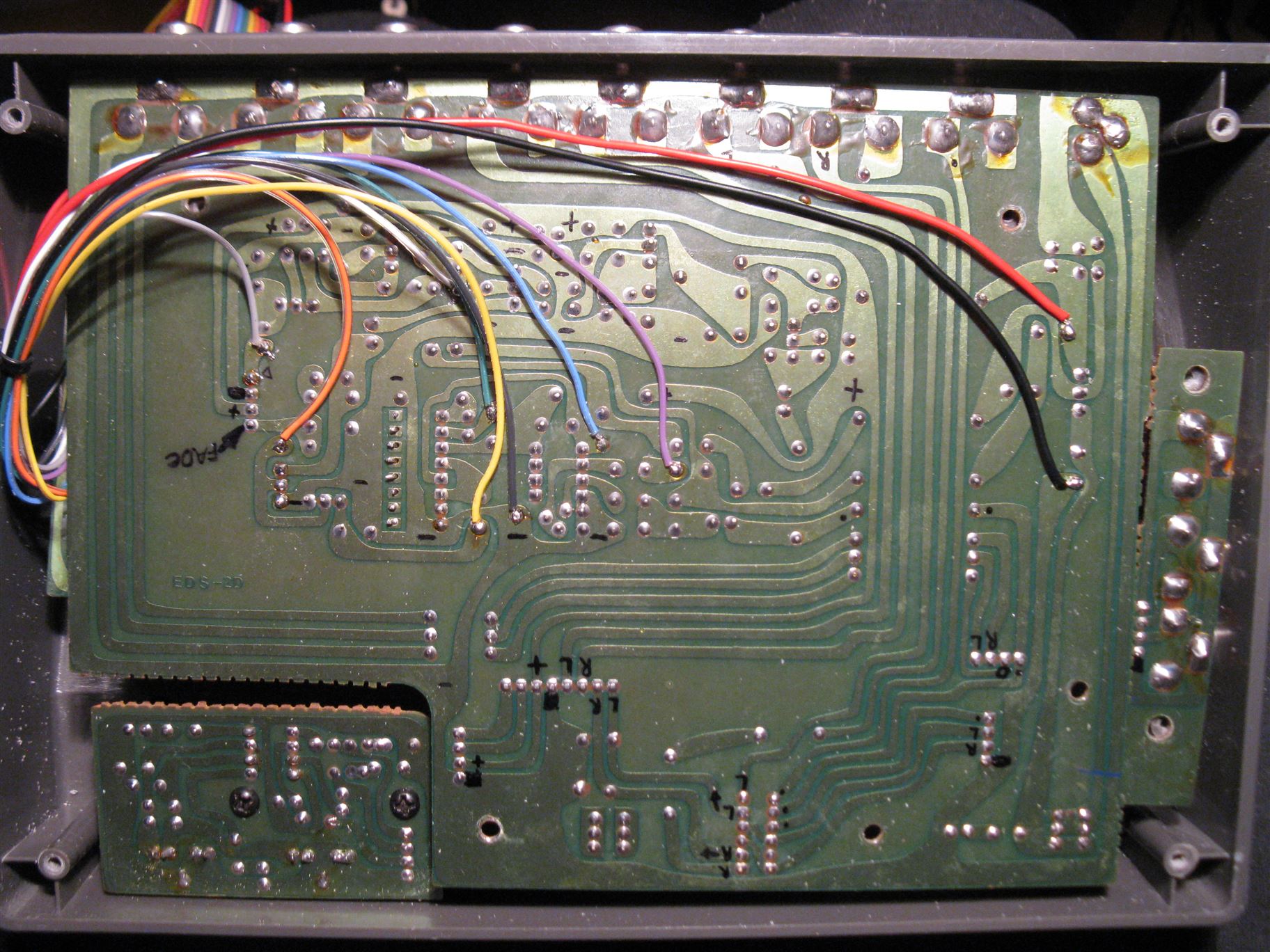

SIMA edit2 - WIP [20220528].jpg
Description:
Filesize:	415.24 KB
Viewed:	130 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

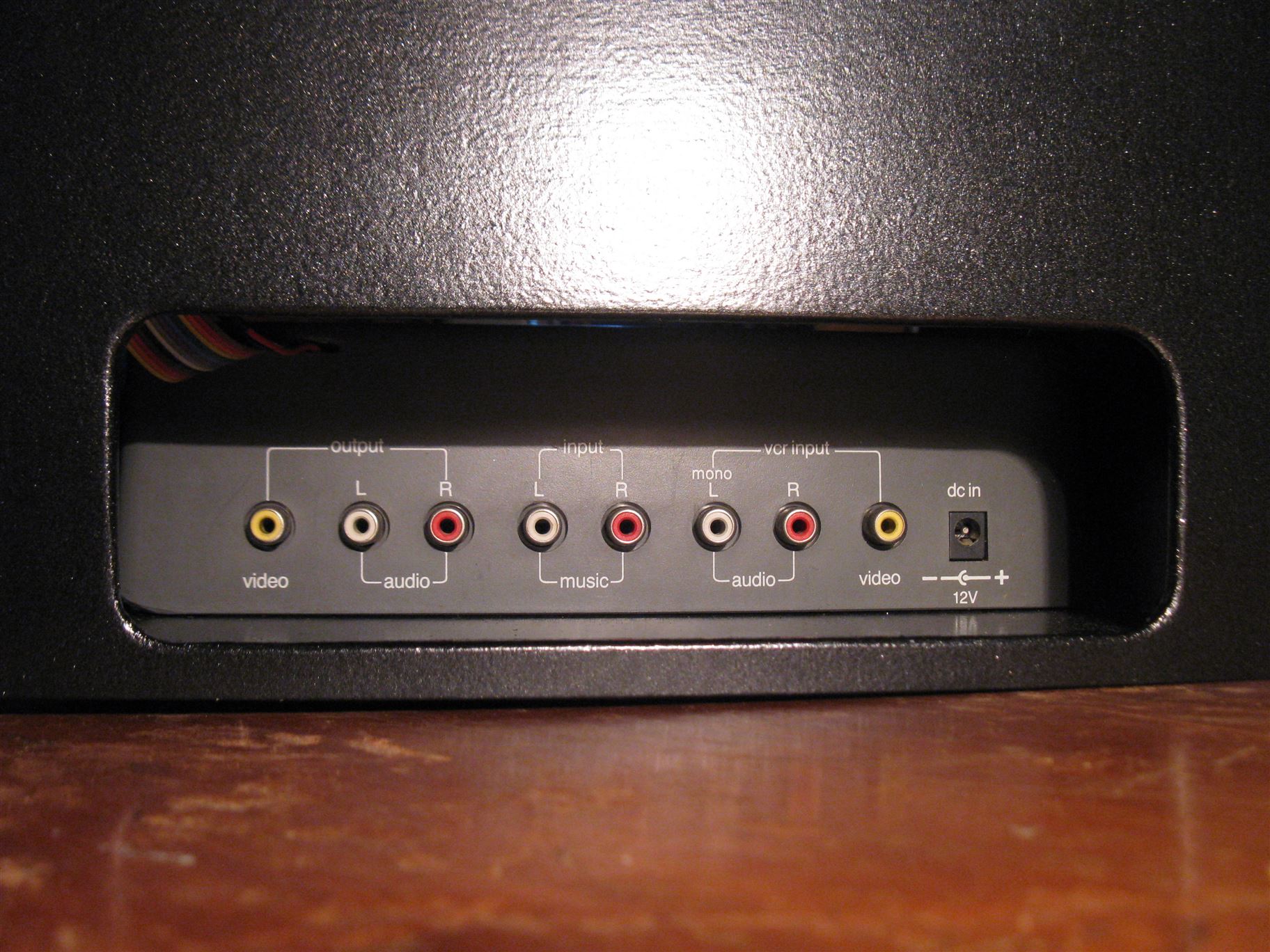

SIMA edit2 - 3 [20220606].jpg
Description:
Filesize:	391.66 KB
Viewed:	127 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

---

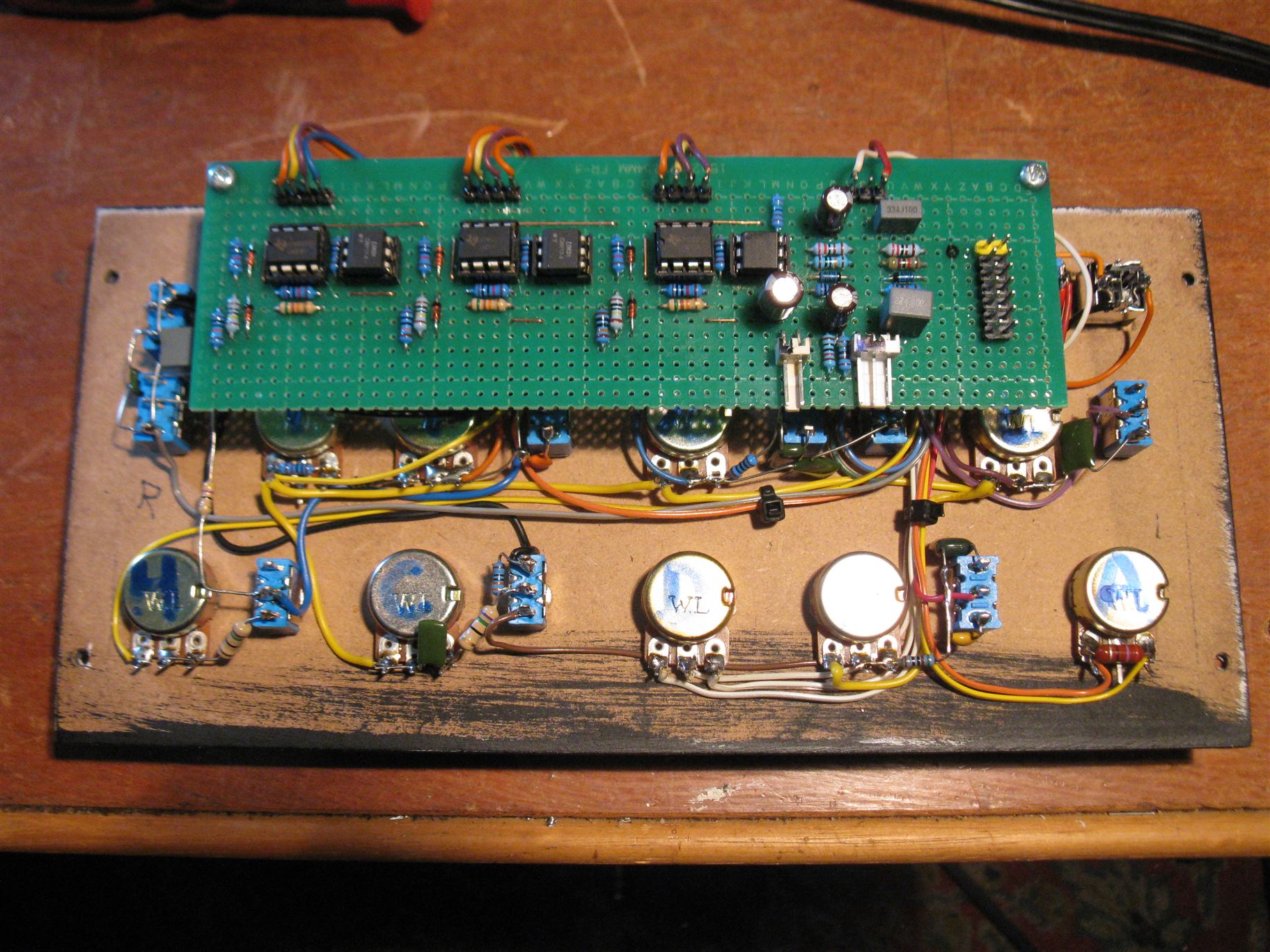

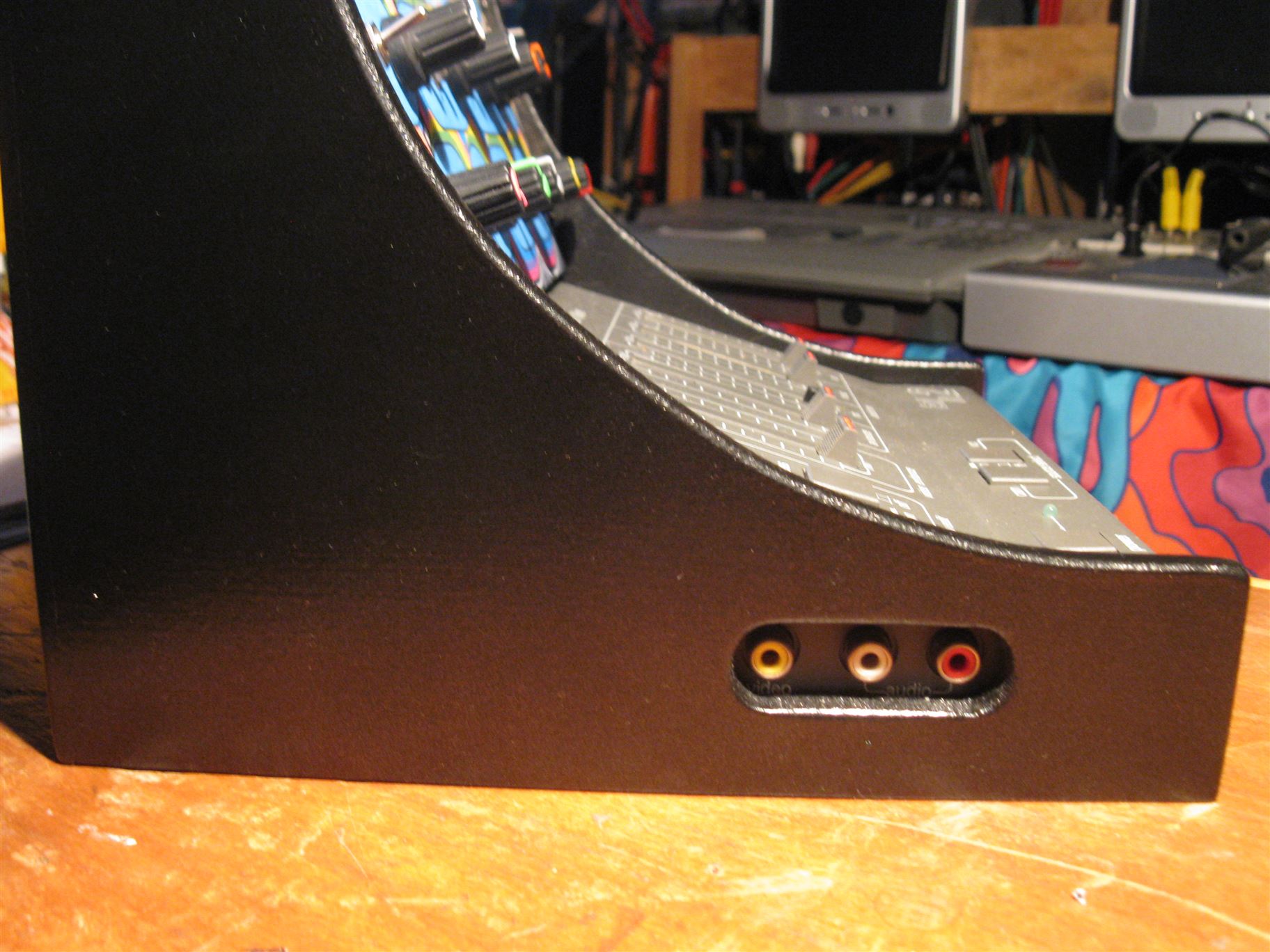

SIMA edit2 - 4 [20220606].jpg
Description:
Filesize:	286.38 KB
Viewed:	136 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---

[PHOBoS]

You can see it in action in the following video: https://youtu.be/tjxw84iRoFg
also still on twitch which probably has better quality https://www.twitch.tv/videos/1501105860

This was a test between the capture method I have been using (cheap composite to HDMI upscaler/converter
+ generic HDMI capture device) on the left and a more expensive Elgato Video Capture device on the right.

All the music I played was created by Muied Lumens and can be found here

[PHOBoS]

recent video feedback experiments, using video mixers, color corrector and a camera + CRT.
I got the camera setup a little bit better but I think it just doesn't really have a suitable lens.
It does give a nice spherical effect though.

https://youtu.be/c0K8GSeX56k

or the cropped and resized 4:3 version
https://youtu.be/BFfJSkS02Yg


all music by Muied Lumens (see video description for more info).

[Psyingo]

Could you post the original (unmodified) schematic for the Sima Edit 2? I believe the enhance might come from the section on the main board? the section that looks similar to the AVE doesnt have a cap on the emitter of the pnp, so it's actually just functioning as an amplifier without high frequency boost.

[PHOBoS]

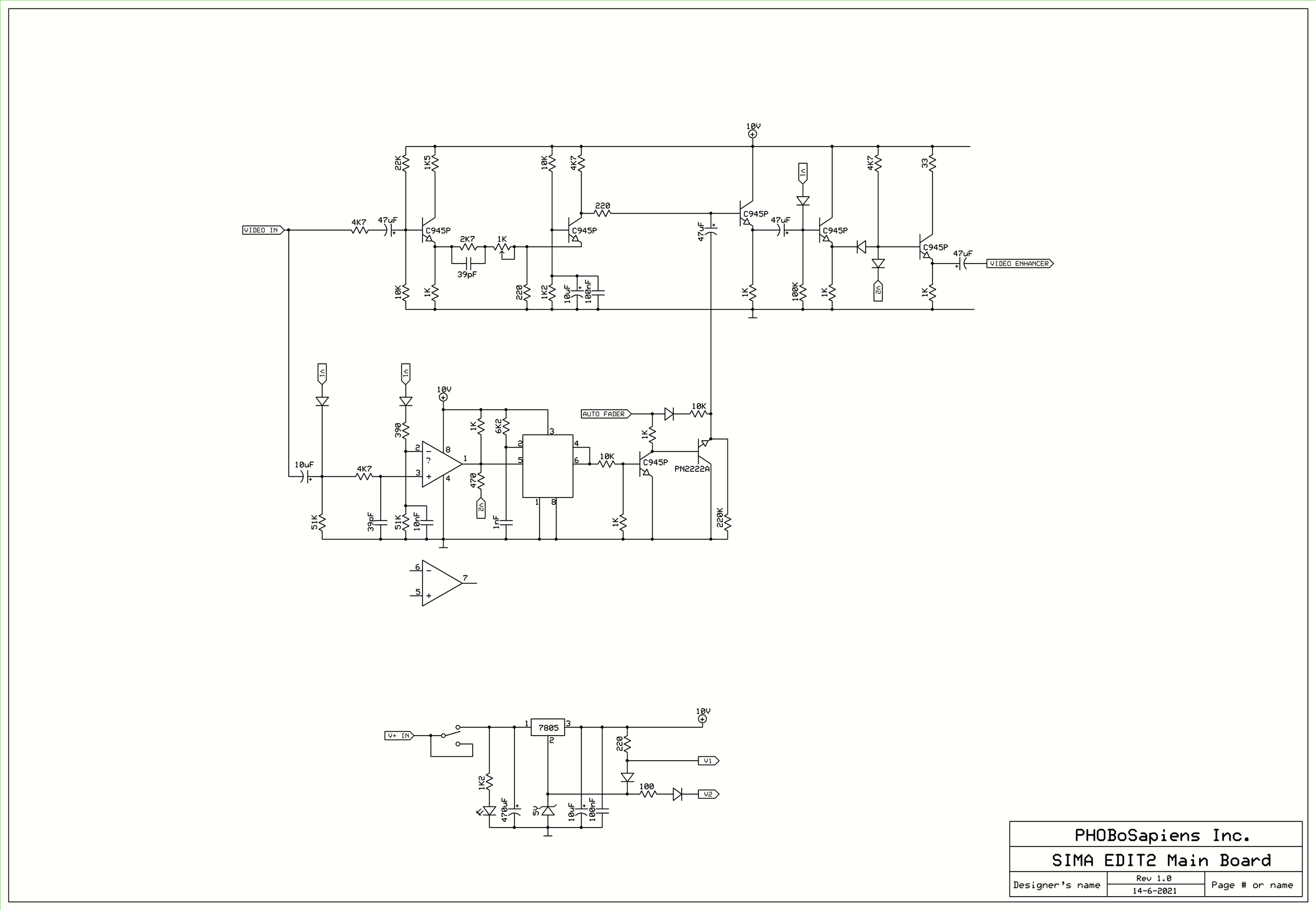

this is what I got, can't promise it's 100% correct.
'Video Enhancer" connects to the pot of the other schematic.

---

SIMA EDIT 2 - main board.gif
Description:
Filesize:	77.48 KB
Viewed:	112 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

---
