Just finished a 4-month studio-rebuild.

1. Klee

Posted Image, might have been reduced in size. Click Image to view fullscreen.

2. SB4000 (SSL-4000G compressor clone)

Posted Image, might have been reduced in size. Click Image to view fullscreen.

- http://www.prodigy-pro.com/diy/forums.html?topic=40755.0

beneath it is...

3. Night-Pro EQ3-D clone

Posted Image, might have been reduced in size. Click Image to view fullscreen.

And here's the whole modular and studio:

Posted Image, might have been reduced in size. Click Image to view fullscreen.

adambee7 · Joined: Apr 04, 2009 Posts: 420 Location: united kingdom

very nice. Very Happy

furio · Posted: Fri May 20, 2011 9:45 am Post subject:

superb =)

emdot_ambient · Joined: Nov 22, 2009 Posts: 667 Location: Frederick, MD

Beautiful!

...now, take a picture of the studio in 3 months without cleaning up first; I wanne see the "lived in" version! Wink

sneakthief · Joined: Jul 24, 2006 Posts: 569 Location: Berlin

Thanks! Feels good to get to this point, especially in an acoustically treated room.

It was chaos here for the last 4 months so I'm going to enjoy the non-mess for a moment.

kkissinger · Posted: Fri May 20, 2011 4:52 pm Post subject:

Danno Gee Ray · Joined: Sep 25, 2005 Posts: 1351 Location: Telford, PA USA

Incredible stuff.

XCenter · Joined: Oct 01, 2005 Posts: 113 Location: Germany

Impressive! BTW where are the black alu knobs from?

sneakthief · Joined: Jul 24, 2006 Posts: 569 Location: Berlin

Now it's time to activate the battlestation - I've been asked to do a remix this week Very Happy

PHOBoS · Posted: Sat May 21, 2011 2:07 am Post subject:

whomper · Posted: Sat May 21, 2011 6:31 am Post subject:

seaweedfactory · Joined: Apr 12, 2006 Posts: 61 Location: Earth

Captain Biscuits · Joined: Jun 11, 2010 Posts: 116 Location: Northampton, UK

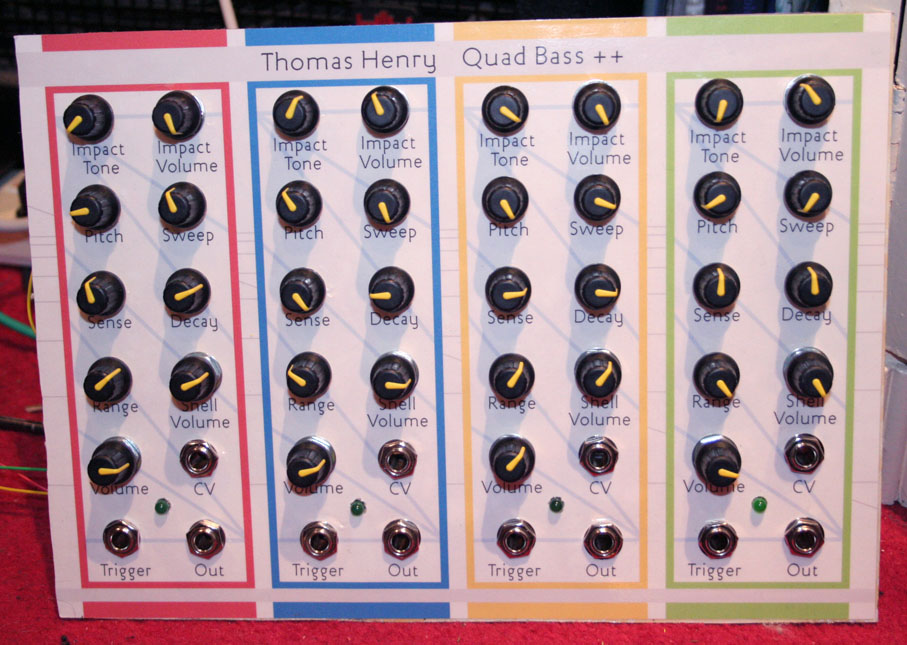

Well this one has taken a while.

Learning to use the headers and crimp (and solder) all of those wires was a bit of a task to say the least. And getting them all wired to the panel was quite fun too! The 15v supply was another story altogether!!

Still it's done at last. Needs a case knocked up and one of the four voices isn't working yet so there's a bit of trouble shooting to do but I have three happy drums which is great.

Now I can get properly stuck into the lunetta rhythm maker I've been toying with to trigger this thing.

Cheers

Ian

Quad Bass.jpg

Description:

Filesize:

166.09 KB

Viewed:

28928 Time(s)

droffset · Posted: Sun May 22, 2011 4:49 pm Post subject:

Looks great Captain, I'm inspired to finish my Quad Bass++ Smile

jordroid · Joined: Jan 17, 2010 Posts: 193 Location: ithaca, new york

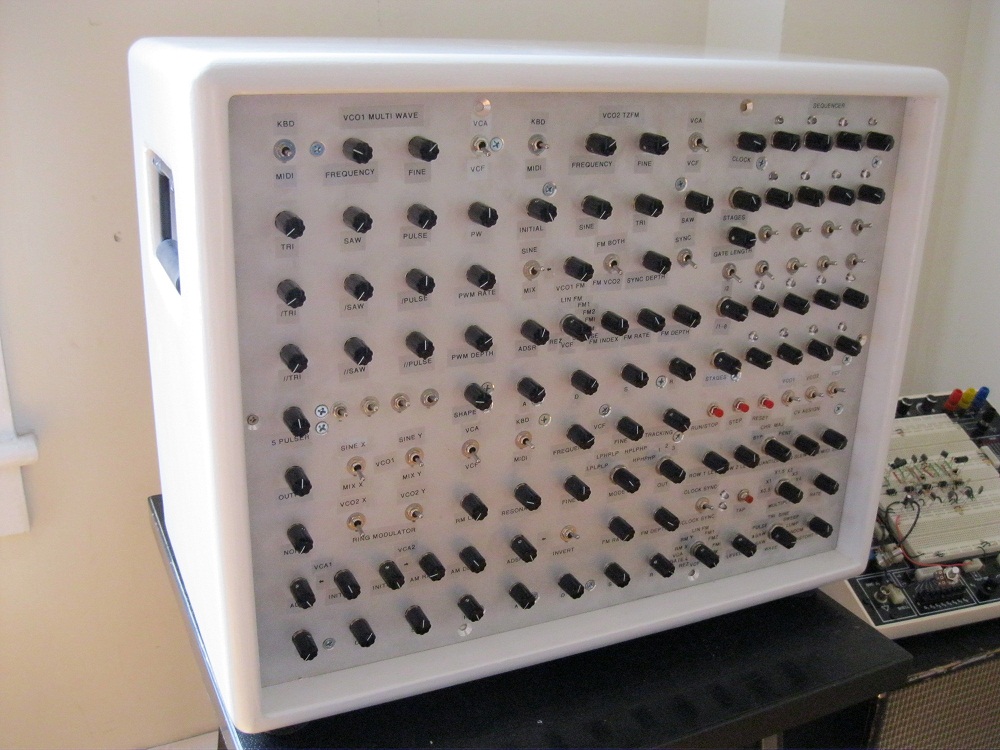

Ahhhh, finally done with my winter project, a synth in a box with normalized connections for ease of playing, from an earlier post in this thread. I have added an Acoupel midi-CV converter and messed with a few things since then, but it's pretty much the same.


Description:

Filesize:

234.57 KB

Viewed:

28747 Time(s)

kjackman · Joined: Sep 05, 2010 Posts: 69 Location: Utah, USA

jordroid, that looks clean and awesome!

But I'm even more curious about that little doodad on the right - the thing with the solderless breadboards on it. What is it?

jordroid · Joined: Jan 17, 2010 Posts: 193 Location: ithaca, new york

Ha, it's a breadboard with a bunch of handy stuff built in, a power supply with +5 volts and adjustable + and - rails, a function generator, a couple of pots, switches, logic stuff and a tiny speaker. I find it super handy, especially the power supply and function generator.

I live near cornell university, and this one was found in a dumpster up there with two others just like it, which went to friends. All three work perfectly, although they all have evidence of some serious DIP barbeque action, you can see a few brown spots where the plastic was melted.

I have a few other (less fancy) breadboards from "up the hill" as well. It's a longstanding tradition here to go dumpster diving right as the students are leaving, they tend to throw out some pretty choice items in their rush to leave town, especially the EE's Smile

jordan


Description:

Filesize:

472.74 KB

Viewed:

28641 Time(s)

kkissinger · Posted: Mon May 23, 2011 10:21 pm Post subject:

Beautilful work, Captain and Jordroid. Will look forward to hearing these creations!

kkissinger · Posted: Mon May 23, 2011 10:40 pm Post subject: A new Yusynth Steiner Filter

I probably don't really need another Voltage-Controlled filter however, for reasons that I don't quite understand, I enjoy building filters.

The Steiner filter is not a complicated filter however it works amazingly well.

To have a front-end mixer for the audio adds to the versatility of the filter. I like to have at least three control voltage inputs, too.

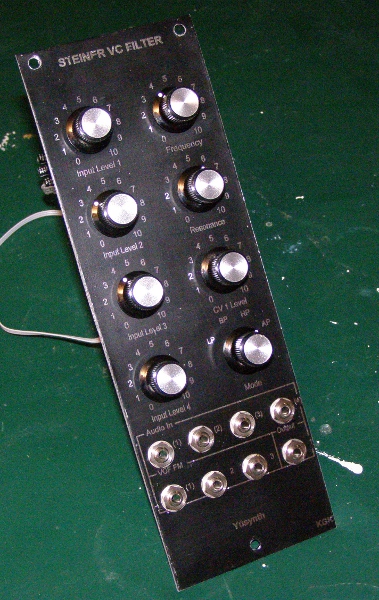

Description:

Front panel view of the Yusynth Steiner filter.

Filesize:

168.22 KB

Viewed:

28546 Time(s)

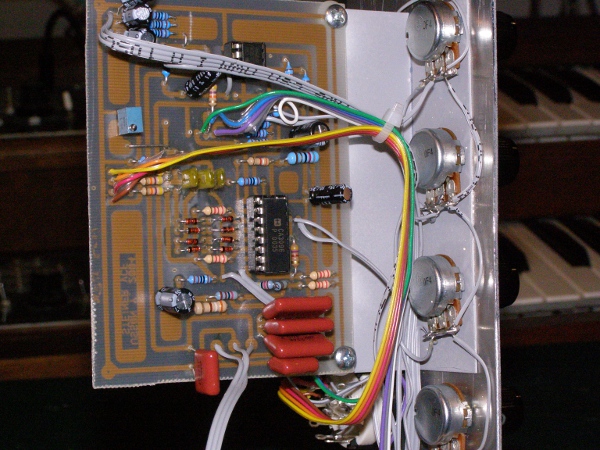

Description:

The PCB behind the panel. At the top left, you can see the resistors I added for additional audio inputs. Since the input stage is an inverting op-amp, this was an easy mod.

Filesize:

176.04 KB

Viewed:

28547 Time(s)

kjackman · Joined: Sep 05, 2010 Posts: 69 Location: Utah, USA

Wow, that proto-board is awesome. I've been picking up parts to build something similar, but designed specifically for synth/audio development. I can't find anything like those mini-breadboards on each of the modules. What you've got there would be worth $100 just for the PSUs, and it comes with so much more. Nice find!

Access to the Cornell EE dumpster, sounds like the beginning of a cool sci-fi story in there somewhere Laughing

Lucky dude.

emdot_ambient · Joined: Nov 22, 2009 Posts: 667 Location: Frederick, MD

Paradigm X · Posted: Tue May 24, 2011 8:31 am Post subject:

jodroid, that looks amazing Shocked

Feel a bit daft posting this now ( Razz

) but Ive finished my first evar x0xb0x !! Well chuffed. Ive since discovered the MIDI in needs looking at but otherwise it sounds and looks (IMO) amazing Very Happy

Cheers

Ben

Posted Image, might have been reduced in size. Click Image to view fullscreen.
